Electric Work Positioner
Manual Pallet Stacker with Reel Rotator , Roller, V Block, Double Spindle
- Versatile Attachment System: Customizable with various attachments including reel rotator and spindle, adapting to diverse material handling challenges.
- Cost-Effective Solution: Premium functionality at a fraction of the cost of standard electric stackers, making it ideal for small businesses and budget-conscious operations.
- Space-Efficient Design: Compact footprint and high maneuverability excel in narrow aisles and confined spaces, perfect for small warehouses and retail environments.
- Flexible Height Options: Available in 1500mm, 1700mm, and 2000mm lift heights with load capacities from 100kg to 200kg, meeting various operational needs.
- Multi-Purpose Functionality: Handles diverse load shapes and sizes with interchangeable attachments, eliminating the need for multiple specialized equipment.
Discover the ultimate in versatile material handling with our Manual Pallet Stacker with Attachments. This innovative solution combines the compact efficiency of a mini stacker with the flexibility of interchangeable attachments, revolutionizing how you handle specialized loads like reels and uniquely shaped cargo. Perfect for small warehouses and retail spaces, it delivers professional-grade performance without the premium price tag of larger electric stackers, making it the smart choice for growing businesses.

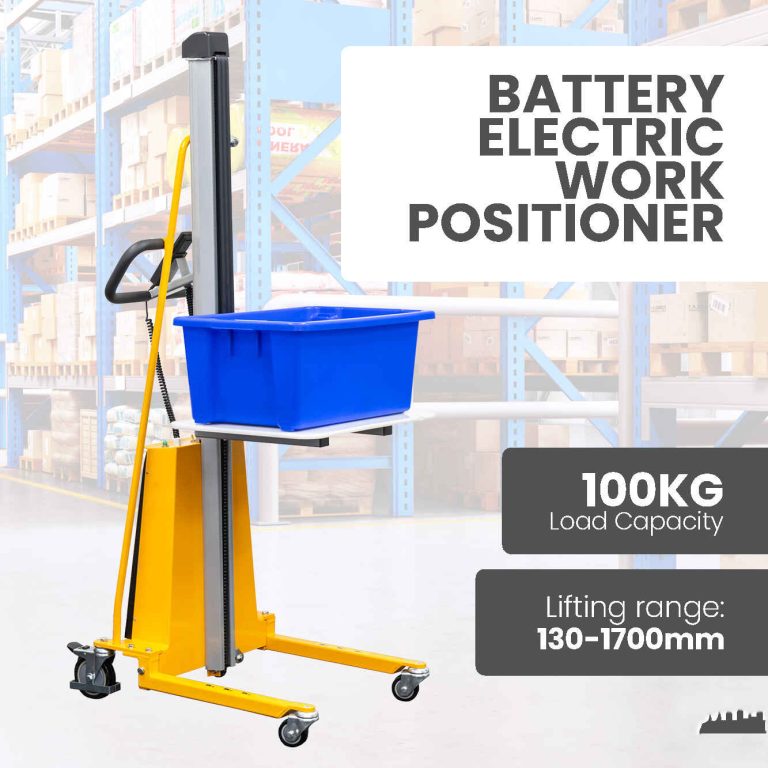

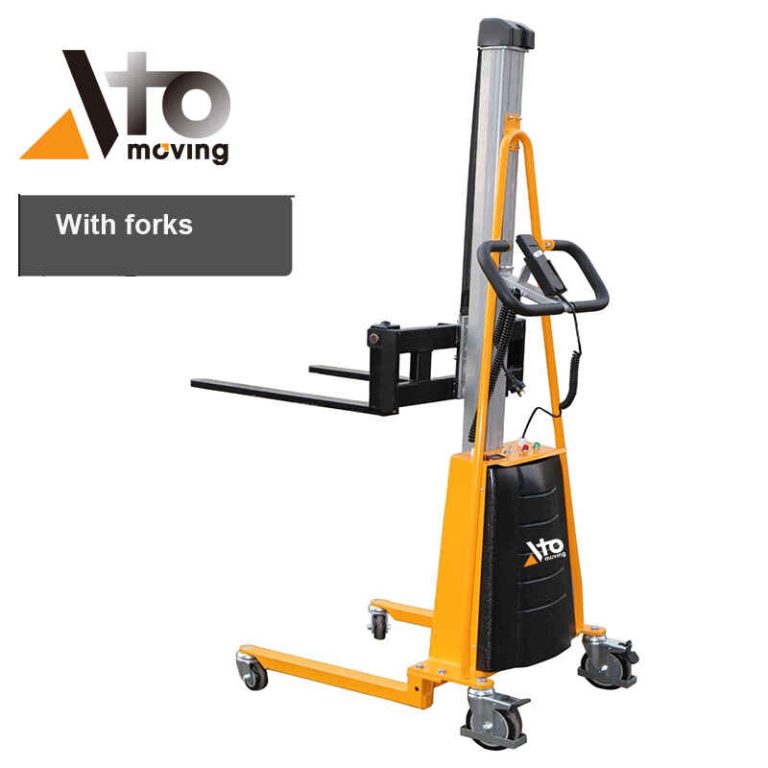

Electric Work Positioner with Attachment
| Model | E100 | E150 | |
|---|---|---|---|
|
Type |
(KG) |
100 |
150 |
|
Load Center |
(mm) |
235 |
235 |
|

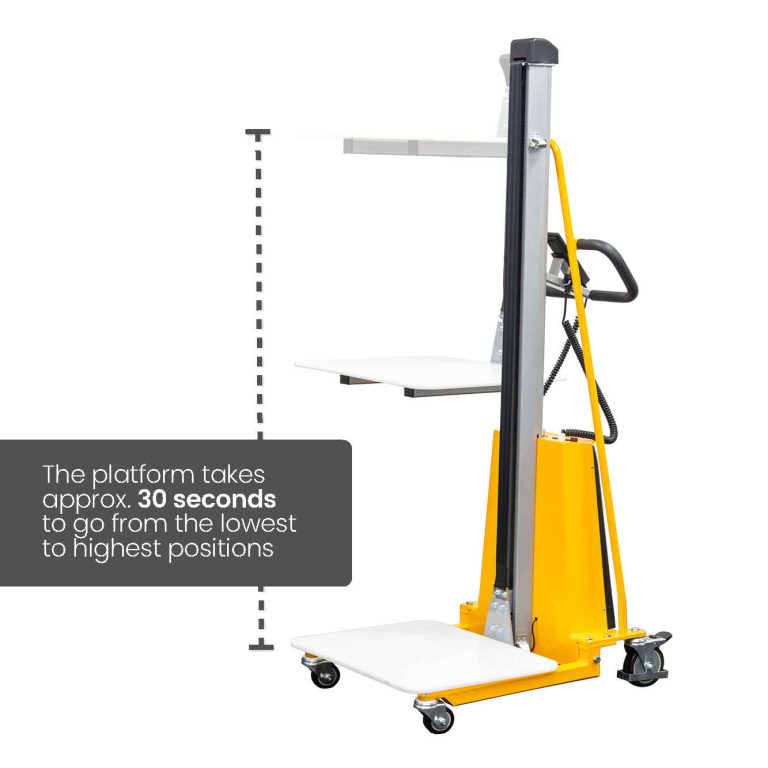

Max.Fork Height |
(mm) |
1700 |
1500 |
|
Min.Fork Height |
(mm) |
130 |
130 |
|
Platform Size |
(mm) |
470x600 |
470x600 |
|
Overall Size |
(mm) |
870x600x1990 |
870x600x1790 |
|
Load Wheel |
(mm) |
Φ75 |
Φ75 |
|
Steering Wheel |
(mm) |
Φ125 |
Φ125 |
|
Battery, Service Free |
|
24V/12Ah |
24V/12Ah |
|
Net Weight |
(KG) |
66 |
63 |
Request an Equipment Quote
More Material Handling Equipment
Performance
Versatile Attachment System for Every Challenge

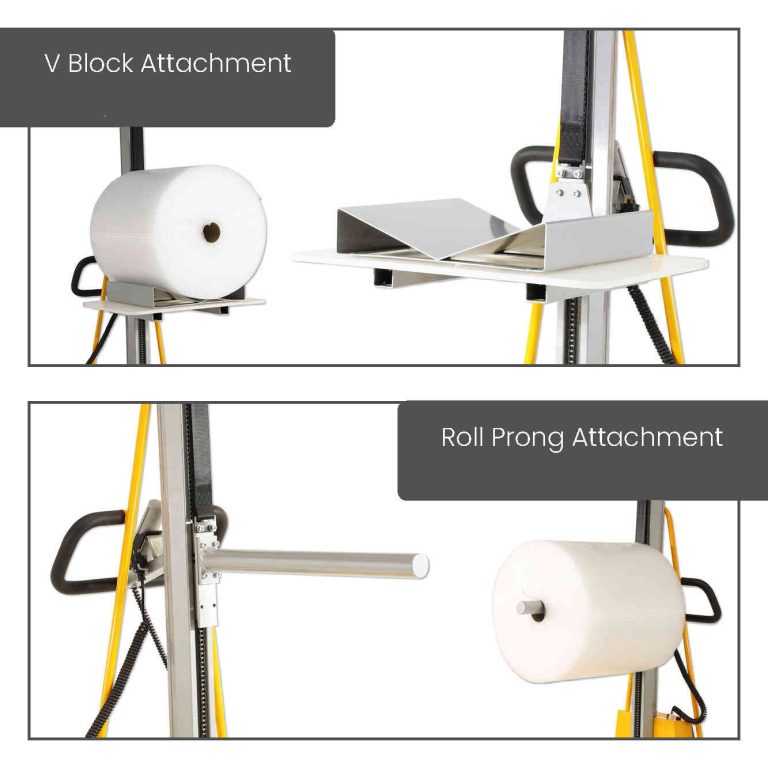

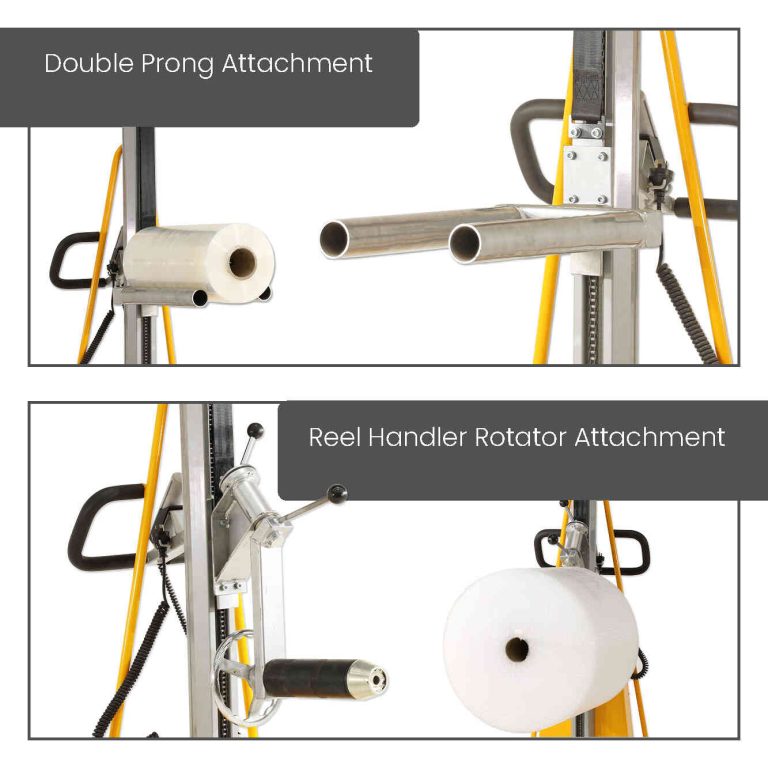

Transform your material handling capabilities with our Manual Pallet Stacker’s innovative attachment system. From the specialized reel rotator for handling cylindrical loads to various spindle attachments for unique cargo shapes, this stacker adapts to your specific needs. Unlike traditional single-purpose equipment, this versatile solution handles diverse materials with ease. Whether you’re managing textile rolls, mechanical parts, or oddly shaped inventory, the interchangeable attachments make this stacker an invaluable asset for any operation.
Cost-Effective Excellence for Growing Businesses
Experience premium functionality without the premium price tag. Our Manual Pallet Stacker delivers professional-grade performance at a fraction of the cost of standard electric stackers. With load capacities ranging from 100kg to 200kg and lifting heights of 1500mm to 2000mm, it matches the capabilities of larger machines while maintaining affordability. This cost-effective solution makes advanced material handling accessible to small businesses, startups, and budget-conscious operations.
Space-Smart Design for Modern Facilities

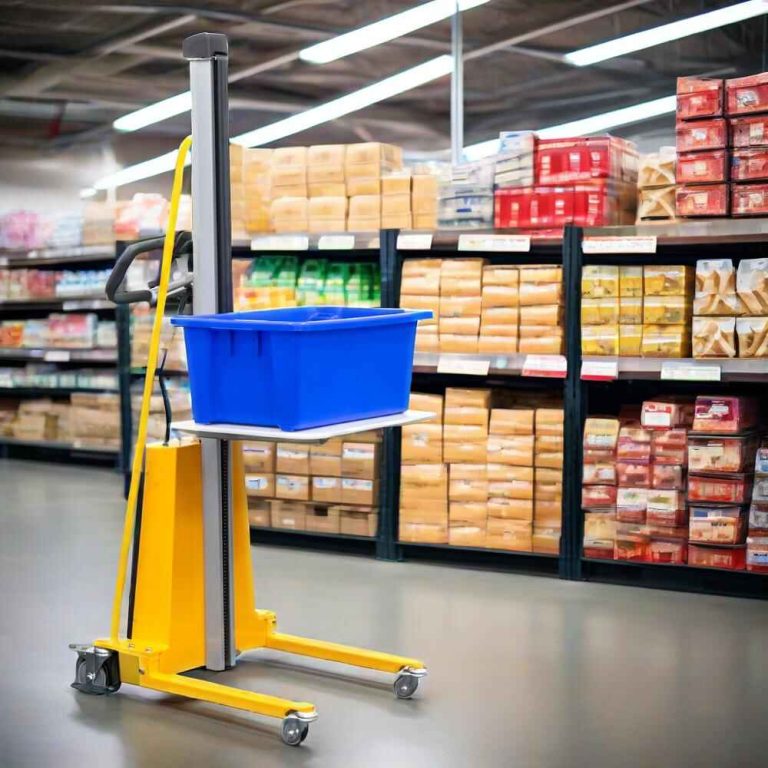

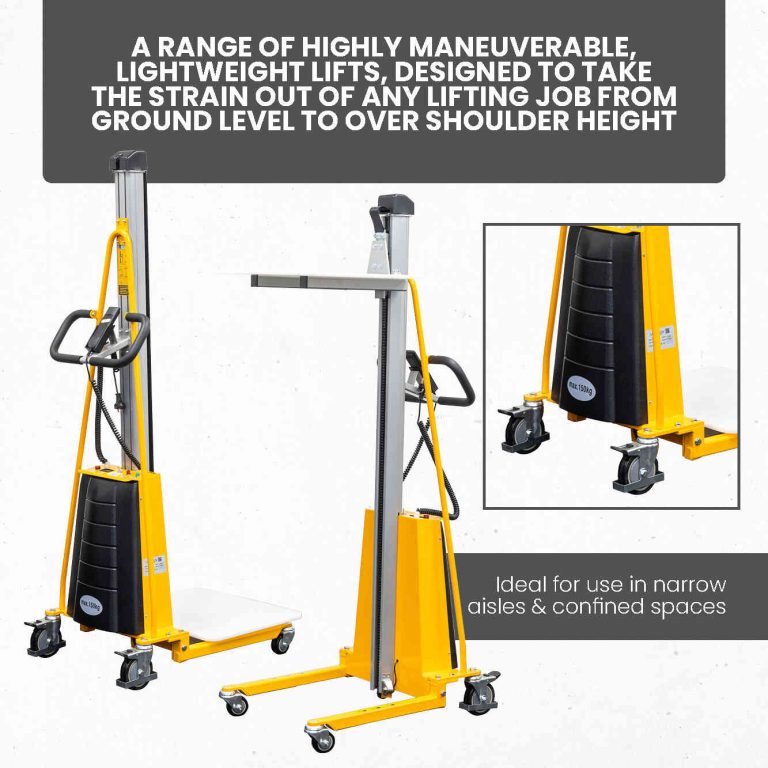

Navigate tight spaces with confidence using our compact Manual Pallet Stacker. Engineered specifically for modern workspace constraints, its nimble design excels in narrow aisles and confined areas where larger equipment can’t operate. Perfect for small warehouses, retail backrooms, and factory floors, this stacker combines impressive maneuverability with reliable performance. The space-efficient design ensures maximum productivity without requiring facility modifications or extra operating space.
Frequently Asked Questions
How does a manual stacker work?
Pre-operation Inspection
- Hydraulic System Check: Ensure the manual hydraulic pump (hand lever or foot pedal) operates smoothly with no oil leakage.
- Fork Condition: Confirm forks are free from deformation and cracks, and are positioned horizontally.
- Wheels and Brakes: Check that wheels move freely and brake function is normal (if equipped).
- Load Limits: Verify the maximum load capacity on the equipment nameplate (typically ≤2 tons) and never exceed the rated capacity.
Manual Stacker Operating Procedures
(1) Loading Goods
- Adjust fork width: According to pallet or cargo width, manually pull apart or close together the forks (adjustable on some models).
- Insert into pallet: Push the stacker forks horizontally into the bottom of the pallet, ensuring complete insertion with the cargo’s center of gravity positioned centrally.
(2) Lifting Goods
- Operate hydraulic pump:
- Hand lever type: Pump the hand lever up and down to raise the forks through the hydraulic system.
- Foot pedal type: Repeatedly press the pedal until the forks reach the target height.
- Control lifting height: Operate slowly to prevent sudden elevation that could cause cargo tilting.
(3) Handling and Movement
- Push the stacker: Grip the handle with both hands and smoothly push the equipment to the target location (pay attention to floor levelness and avoid obstacles).
- Steering: Control direction through the handle, slow down when turning to prevent cargo swaying.
(4) Unloading and Lowering
- Position at unloading point: Align the cargo with the stacking position or rack.
- Release hydraulic pressure: Slowly turn the hydraulic valve (usually located near the handle), allowing the forks to descend at a steady rate.
- Withdraw forks: After confirming the cargo is stable, horizontally pull out the stacker.
Manual Stacker Safety Precautions
- Maintain Stability: Keep cargo close to the fork backrest during handling to prevent center of gravity displacement.
- No Personnel Carrying: Manual stackers are for cargo handling only and must not be used as lifting platforms for people.
- Slope Operations:
- Uphill: Push forward with cargo positioned at the rear.
- Downhill: Pull backward to prevent loss of control.
- When Parking: Lower forks to the lowest position to avoid tripping hazards.
Maintenance Regular
- Lubrication: Apply lubricating oil to moving parts such as wheel axles and hydraulic rods.
- Clean Hydraulic System: Prevent dust from clogging hydraulic valves.
- Inspect Seals: If hydraulic pump pressure is insufficient, seal components may be aged and require replacement.
Manual stackers are simple to operate, but require attention to stability and load balance. Once proficient, they can significantly improve handling efficiency.
