250KG Manual Drum Truck, Drum Mover
- Variable Chassis Geometry: Available in 610 mm (24.0 in) standard width or 850 mm (33.5 in) wide-straddle configurations to suit specific aisle constraints.

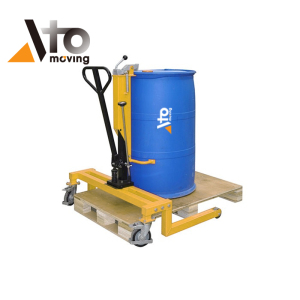

- Pallet Interoperability: The DTW250 model features an 850 mm (33.5 in) inner width, engineered to completely encircle Euro-pallets and 860 mm (33.9 in) spill containers.
- Hydraulic Precision: Integrated foot-pump hydraulic system achieves a maximum lift height of 240 mm (9.4 in) for clearing containment bunds.

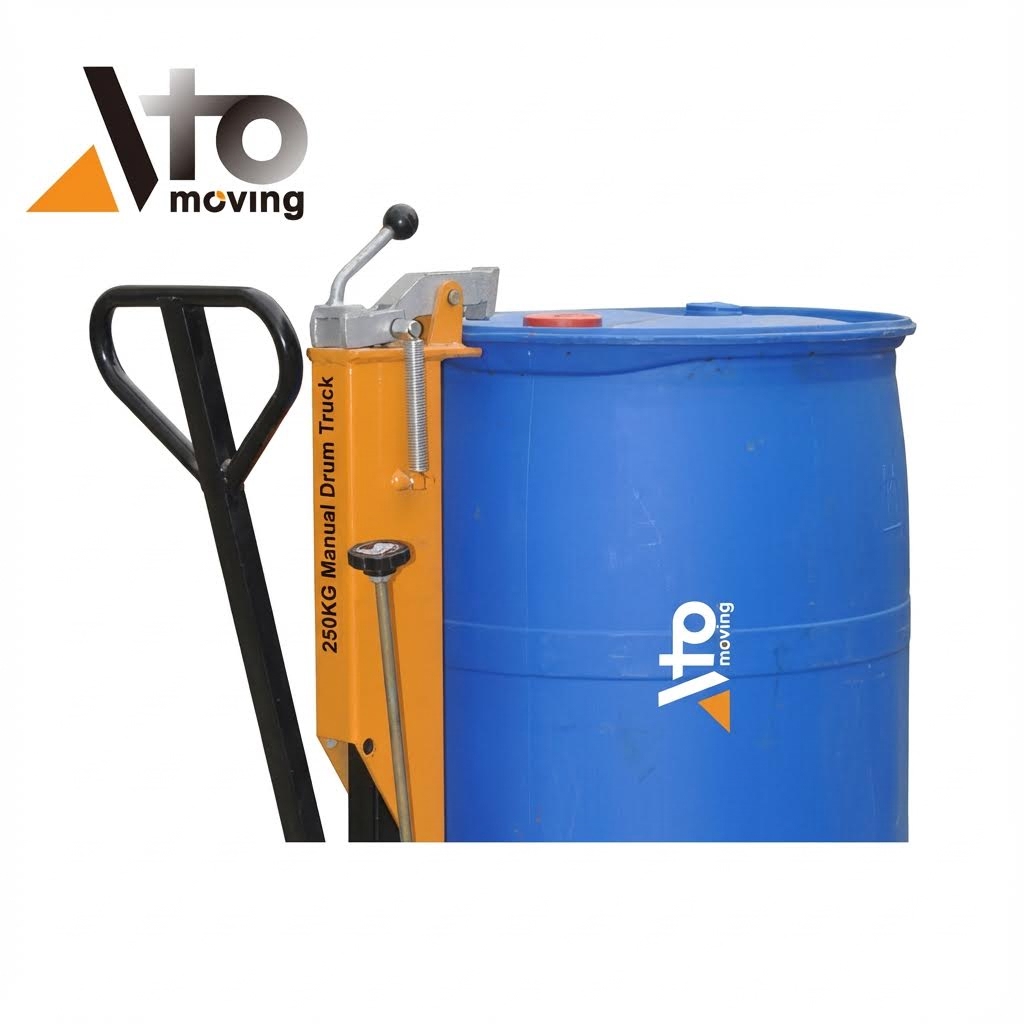

- Universal Rim Grip: Securely handles rimmed steel and plastic drums up to 250 kg (551 lbs) using a spring-loaded mechanical beak.

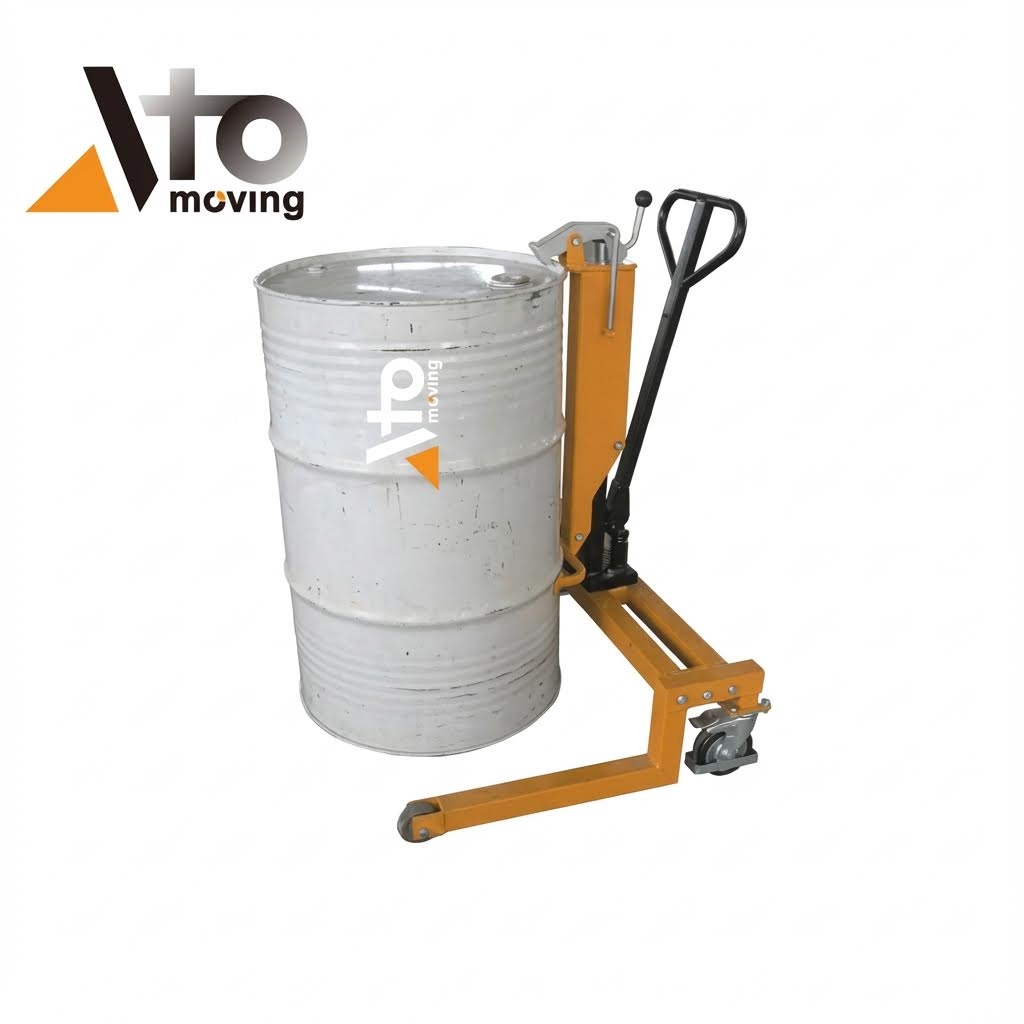

The DT Series Manual drum mover is a robust material handling solution designed for the ergonomic transport and positioning of industrial containers. Engineered for B2B applications, this equipment supports a Safe Working Load (SWL) of 250 kg (551 lbs) and is compatible with standard rimmed steel or plastic drums. The series offers three distinct engineering configurations: the standard DT250 with a 610 mm (24.0 in) width for narrow transit; the DTW250 with an expanded 850 mm (33.5 in) straddle width for direct pallet access; and the DTR250, featuring double rear wheels and a low-profile leg design for enhanced stability. All models utilize a hydraulic lift mechanism providing 240 mm (9.4 in) of vertical travel, ensuring operators can easily elevate drums over uneven surfaces or onto spill containment decks without manual strain.
Model for Drum Mover
| Model | DTR250L | |
|---|---|---|
|
Rated Load
|
kg |
250 |
|
Specification for Oil Drum
|
|
55 gallon (Ф572×900)
|
|
Lifting Height
|
mm |
330
|
|
Cylinder Stroke |
mm |
270
|
|
Front Wheel Size (PU Round): |
mm |
Ф130×40
|
|
Rear Wheel Size (PU Round) |
mm
|
Ф120×35
|
|
Straddle Leg Width |
mm
|
850
|
|
Net Weight (NW) |
kg
|
50
|
Request an Equipment Quote
Find More Drum Handling Equipment
Performance
Optimized Straddle Geometry for Pallet Loading

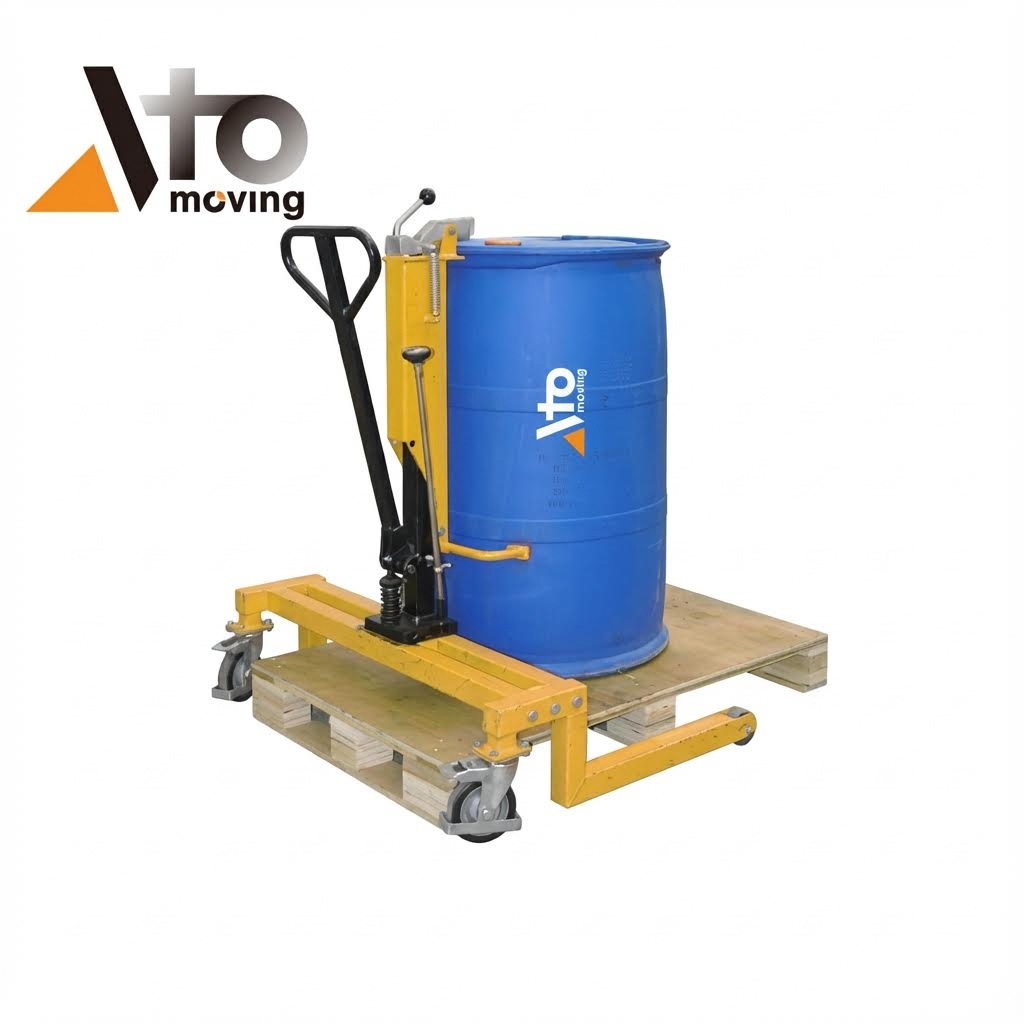

Operational efficiency in warehouses often hinges on the ability to interact with pallets without secondary equipment. The DTW250 model addresses this with a structural inner width of 850 mm (33.5 in). This dimension is calculated to exceed the width of standard Euro-pallets and spill containers up to 860 mm (33.9 in) wide. By straddling the target, the unit aligns the lifting mechanism directly with the drum’s center of gravity, eliminating the need to drag drums to the pallet edge manually. Conversely, the DT250 model offers a compact 610 mm (24.0 in) footprint, optimized for maneuvering in confined workshops or narrow aisles.
Hydraulic Lift Stroke and Clearance
Unlike purely mechanical leverage trucks, this series employs a hydraulic pump system to achieve a vertical lift height of 240 mm (9.4 in). This specific stroke length is critical for two reasons: First, it allows sufficient ground clearance to transport drums over thresholds and ramps without bottoming out. Second, it provides the necessary elevation to place drums onto or remove them from standard spill containment pallets, which typically feature raised lips. The hydraulic advantage reduces operator input force, allowing for the controlled elevation of full 250 kg (551 lbs) loads with minimal physical exertion.
Stability Configuration (DTR250 Specifics)
For applications requiring enhanced load distribution, the DTR250 variant is engineered with a specialized wheel configuration. It features double rear wheels rather than single casters, increasing the contact surface area. This reduces floor contact pressure (PSI), making it suitable for softer flooring materials or grated surfaces where single wheels might bind. Additionally, the low leg profile lowers the unit’s center of gravity, significantly improving lateral stability during cornering while transporting dynamic liquid loads at the maximum 250 kg (551 lbs) capacity.
Frequently Asked Questions
What is a drum mover and how does it work?
A drum mover is a specialized material handling tool designed to safely transport, lift, and position heavy industrial drums. It usually features a sturdy frame, ergonomic handle, wheels for mobility, and a clamping or support mechanism to secure the drum. Many drum movers use hydraulic or manual lifting systems to reduce operator effort, allowing smooth movement in warehouses, factories, and industrial work areas.
What types of drums can a drum mover handle?
Drum movers can handle a variety of standard industrial drums, including 55‑gallon steel drums, plastic drums, fiber drums, open‑top drums, and tight‑head drums. Most models are built with adjustable or universal gripping systems to fit common drum sizes and materials, making them versatile for different industrial applications.
Is it safe to move a filled 55-gallon drum with a drum mover?
Yes, it is safe to move a filled 55‑gallon drum with a drum mover as long as the equipment is used within its rated weight capacity and operated correctly. Always inspect the drum mover before use, ensure the drum is securely held, move slowly on flat surfaces, and avoid sudden turns or tilting. Properly maintained drum movers are designed specifically for safely moving full, heavy drums.
