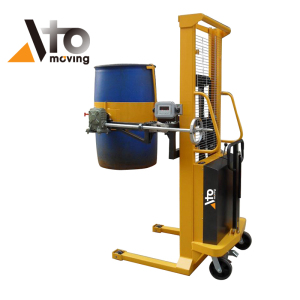

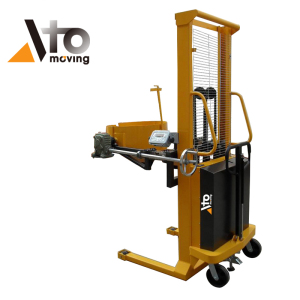

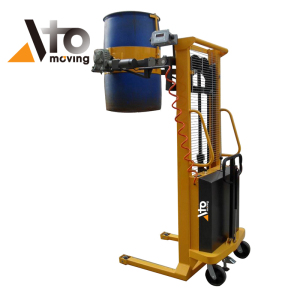

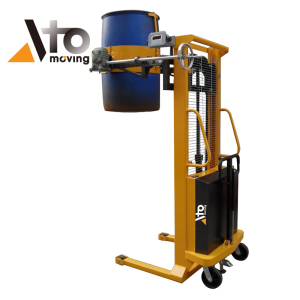

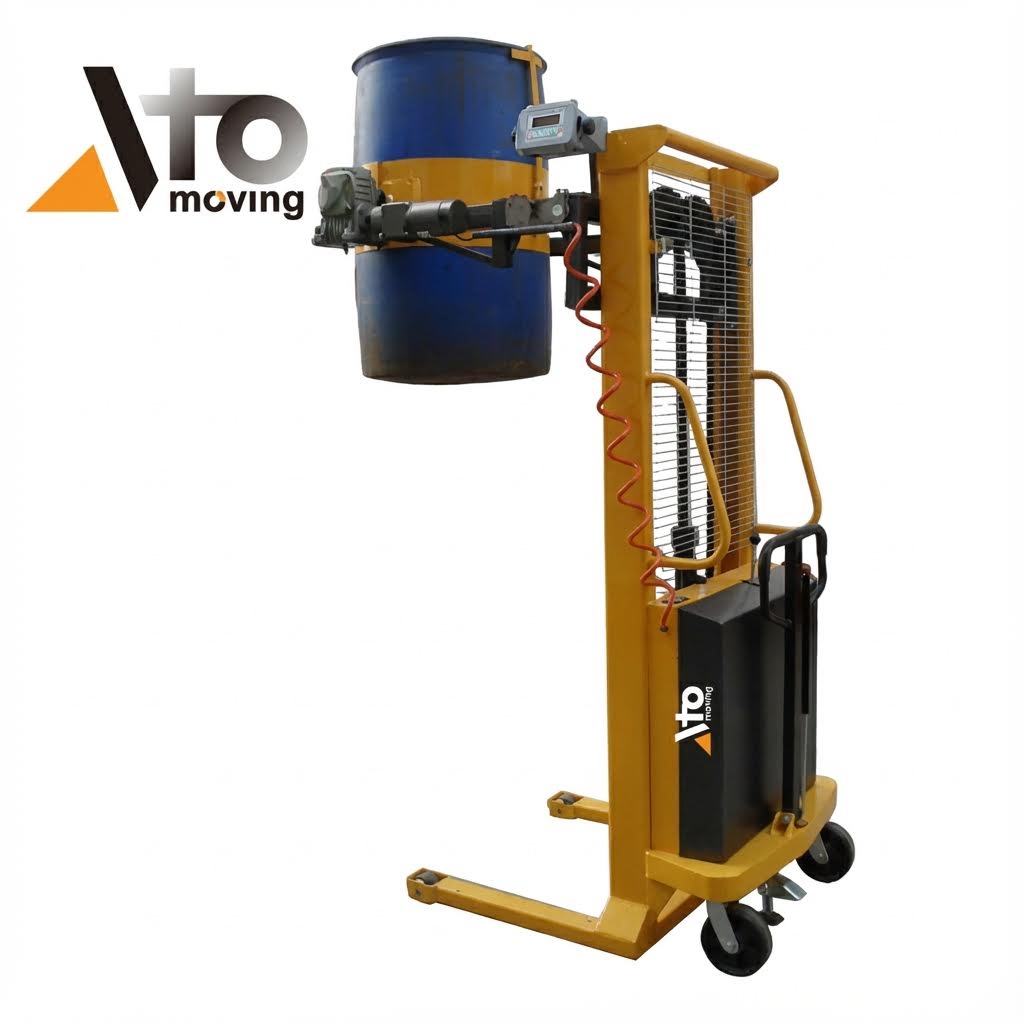

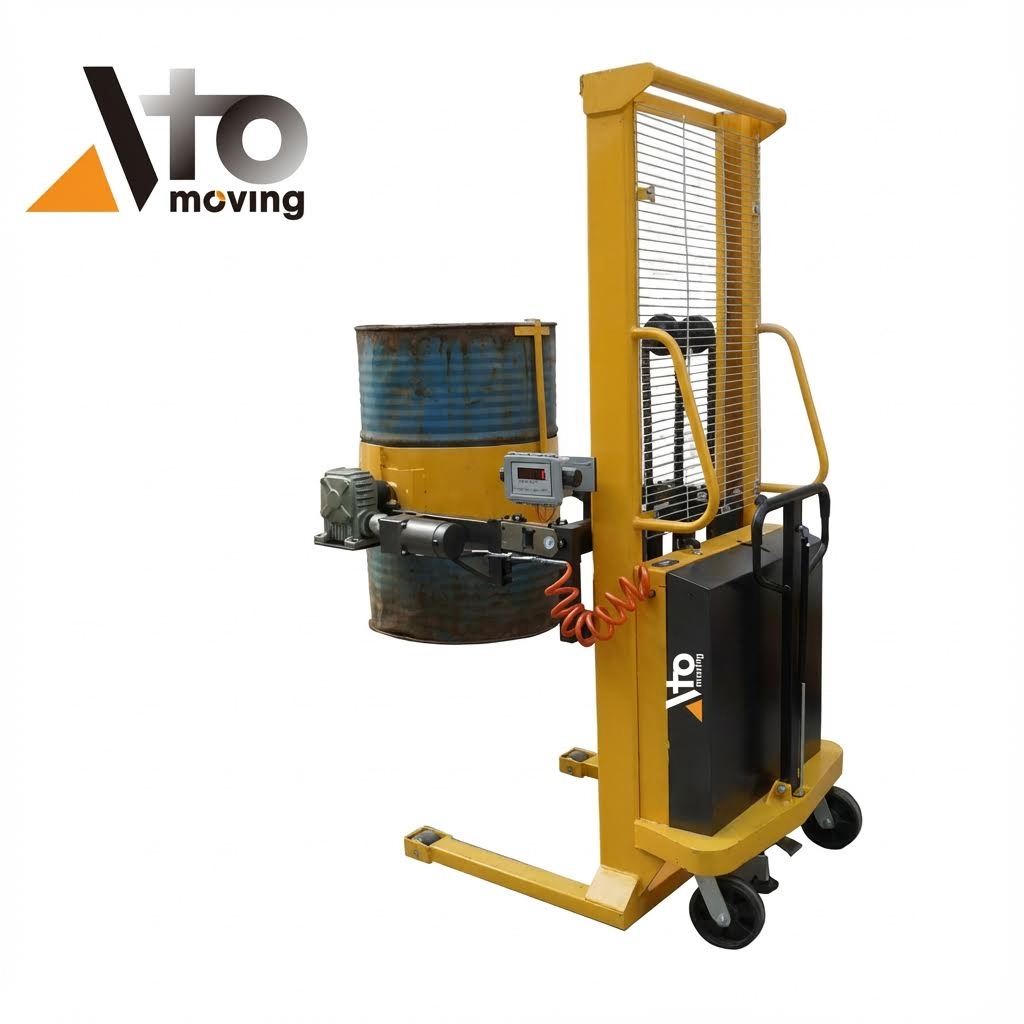

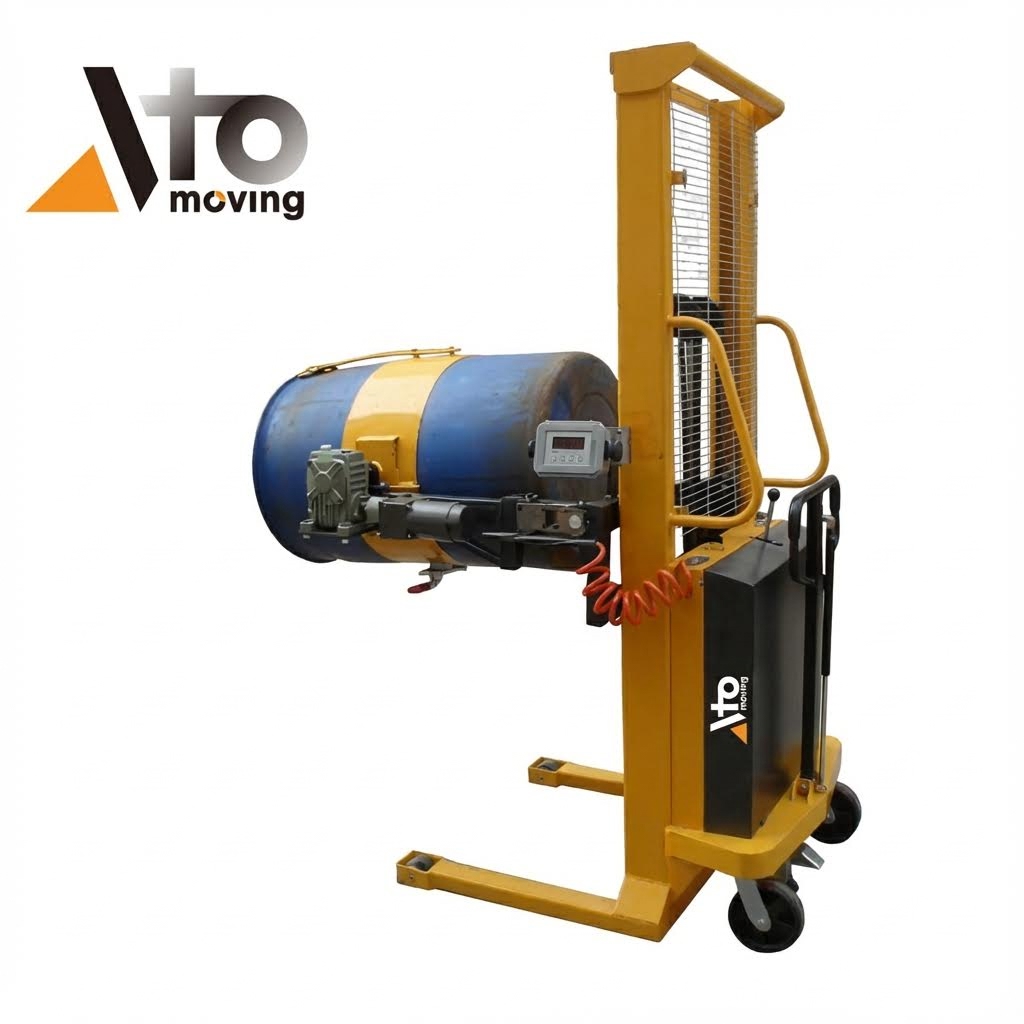

520kg Weighing Drum Stacker, Barrel Lifter
- High-Torque Hydraulic Drive: Features a 1.5 kW (2.0 hp) pump unit achieving a lifting velocity of 120mm/s (4.7 in/s) for rapid throughput.
- Enhanced Structural Rigidity: Specialized C-type rolled steel frame minimizes mast deflection when rotating full 520kg (1146 lbs) loads.
- Integrated Metrology (YL520-1): Built-in weighing system delivers ±3‰ accuracy, enabling simultaneous transport and inventory verification.
- Universal Drum Compatibility: Engineered to securely clamp standard Ø572mm (22.5 in) steel drums and 210L (55 gal) plastic or fiber containers.
- Sustained Operations: Equipped with a deep-cycle 12V/120Ah maintenance-free battery to support multi-shift duty cycles.
Model for Barrel Lifter
| Model | YL520/ YL520A | |
|---|---|---|
|
Loading Weight
|
kg |
520
|
|
Drum Size
|
|
55 gallon ( (Ø572×900) steel, 210L plastic
|
|
Lifting Height
|
mm |
1600
|
|
Wheel Dimension
|
mm |
Ø80×55/Ø150×50
|
|
Inner/Outer Width of Front Leg
|
mm |
640/800
|
|
Turning Radius
|
mm
|
1620
|
|
Pump Unit Power
|
KW/h
|
1.5
|
|
Battery Parameter
|
Ah/V
|
120/12
|
|
Lifting Speed
|
mm/s
|
120
|
|
Outline Dimension (LxWxH)
|
mm
|
1400*980*2080
|
|
Net Weight
|
kg
|
269
|
Request an Equipment Quote
Find More Drum Handling Equipment
Performance
Hydraulic Efficiency and Duty Cycle
The core of the YL520’s performance is its industrial-grade 1.5 kW (2.0 hp) hydraulic pump station. Unlike manual pump-assist models, this electric system delivers consistent pressure to achieve a lifting speed of 120mm/s (4.7 in/s), significantly reducing cycle times during truck loading or rack placement. Power is supplied by a heavy-duty 12V/120Ah maintenance-free battery, specifically selected to provide the amp-hour capacity needed for extended shifts without frequent recharging. This electrification eliminates operator physical strain and ensures precise vertical positioning control.
C-Type Rolled Steel Chassis Architecture
Structural integrity is paramount when rotating suspended loads. The YL520 departs from conventional welded tube designs by utilizing a C-type rolled steel frame. This manufacturing process aligns the steel’s grain structure to provide higher tensile strength and resistance to lateral deformation. With a net unit weight of 269kg (593 lbs) acting as a counter-balance, and a wide 800mm (31.5 in) stance, the unit maintains exceptional center-of-gravity stability even when the mast is fully extended to 1600mm (5.2 ft).
Precision Weighing and Maneuverability
The YL520-1 variant transforms the standard barrel lifter into a mobile dosing station. The integrated weighing module offers a tolerance of ±3‰, allowing Procurement and Warehouse Managers to verify incoming chemical volumes or meter outgoing product without transporting drums to a stationary floor scale. The unit is mounted on wear-resistant Ø150mm (5.9 in) nylon rear wheels with mechanical brakes, ensuring smooth rolling resistance and secure positioning during the weighing or dumping process. This combination of mobility and metrology streamlines workflow efficiency by consolidating transport and auditing into a single step.
Frequently Asked Questions
What is a barrel lifter and what is it used for?
A barrel lifter is a specialized material handling tool designed to safely lift, move, transport, and position heavy industrial barrels and drums. It is commonly used in warehouses, factories, chemical plants, and manufacturing facilities to handle steel, plastic, and fiber barrels without manual lifting, improving efficiency and workplace safety.
How does a barrel lifter improve worker safety?
A barrel lifter improves worker safety by eliminating heavy manual lifting, bending, and twisting, which greatly reduces the risk of back injuries, muscle strain, and falls. It provides secure gripping to prevent barrels from slipping or dropping, especially when handling hazardous or heavy materials. It also keeps operators at a safe distance from loads and helps maintain stable, controlled movement.
What types of barrels can a barrel lifter handle?
Barrel lifters can handle a wide range of industrial barrels, including standard 55-gallon steel barrels, plastic barrels, fiber barrels, tight-head drums, and open-top barrels. Most models feature adjustable or universal gripping mechanisms to fit different barrel sizes and materials, making them highly versatile for various industrial applications.
