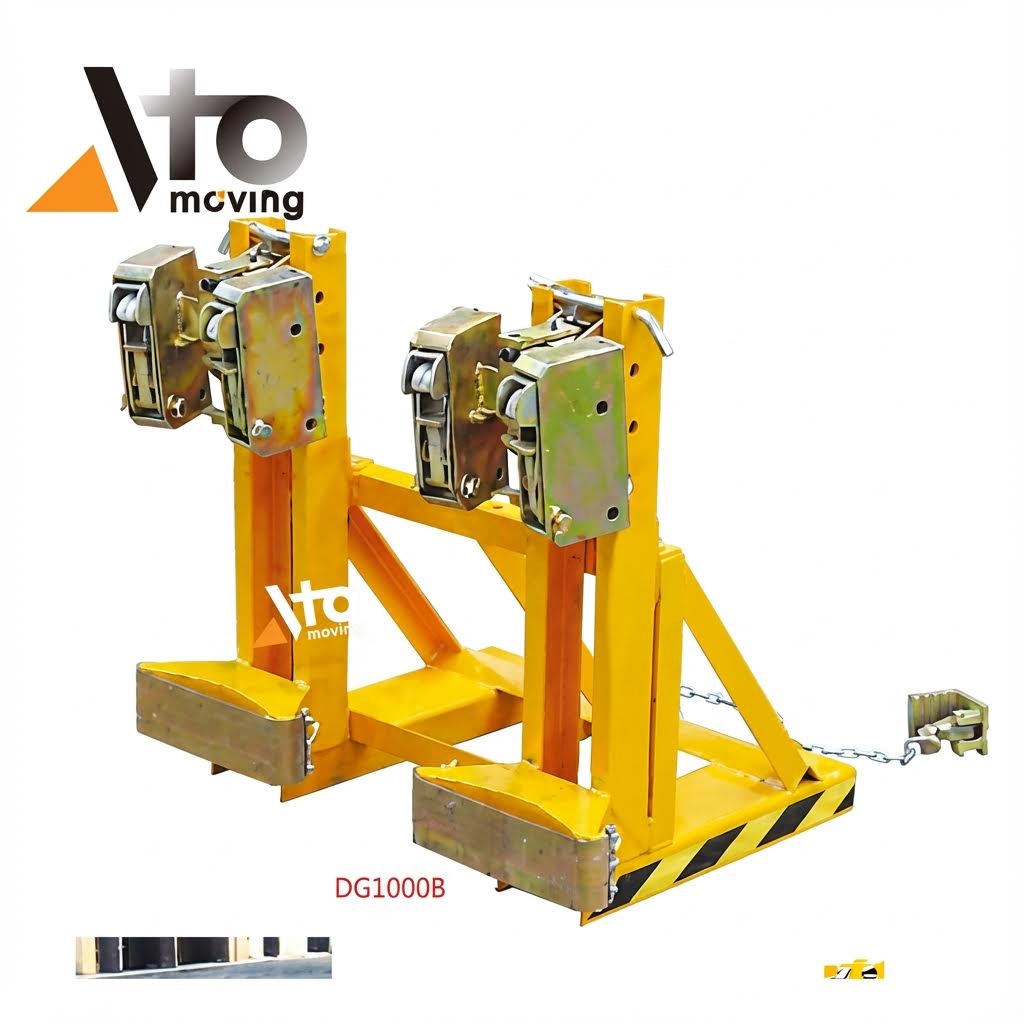

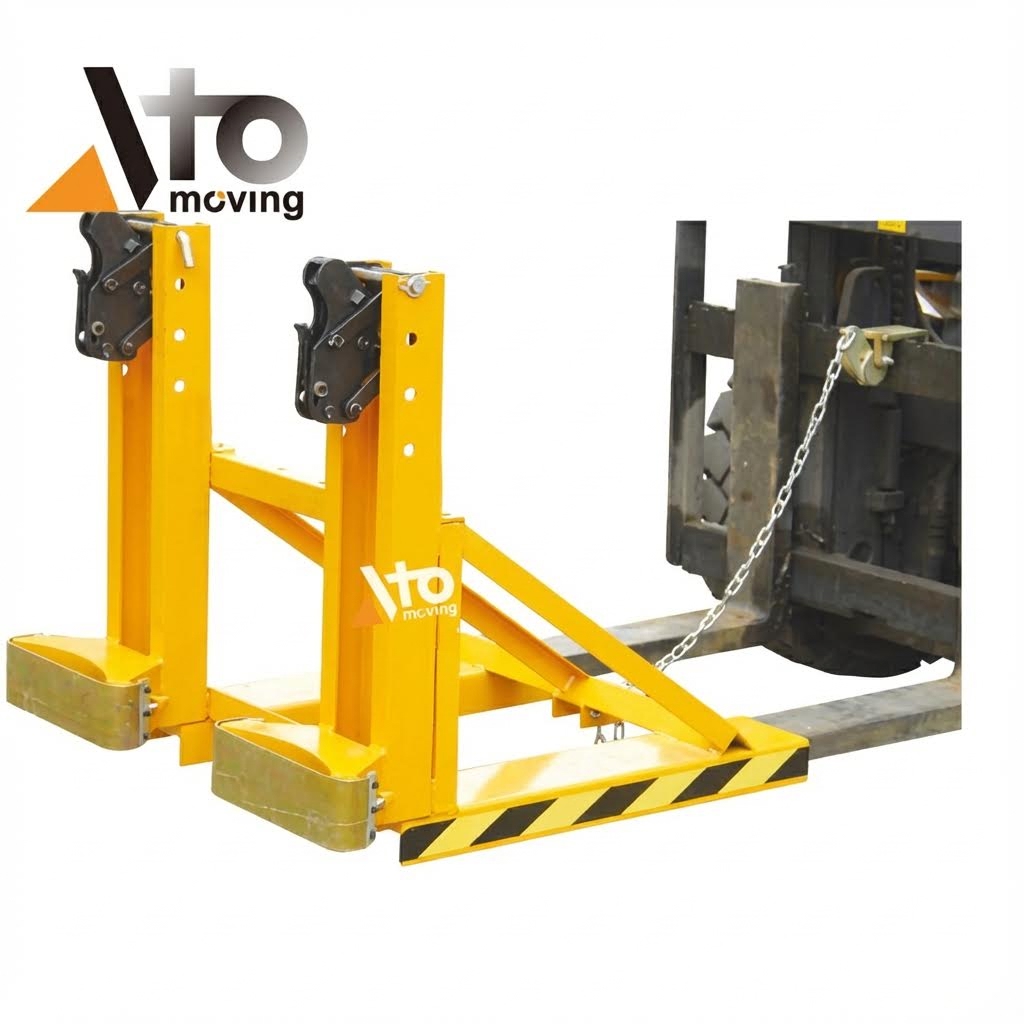

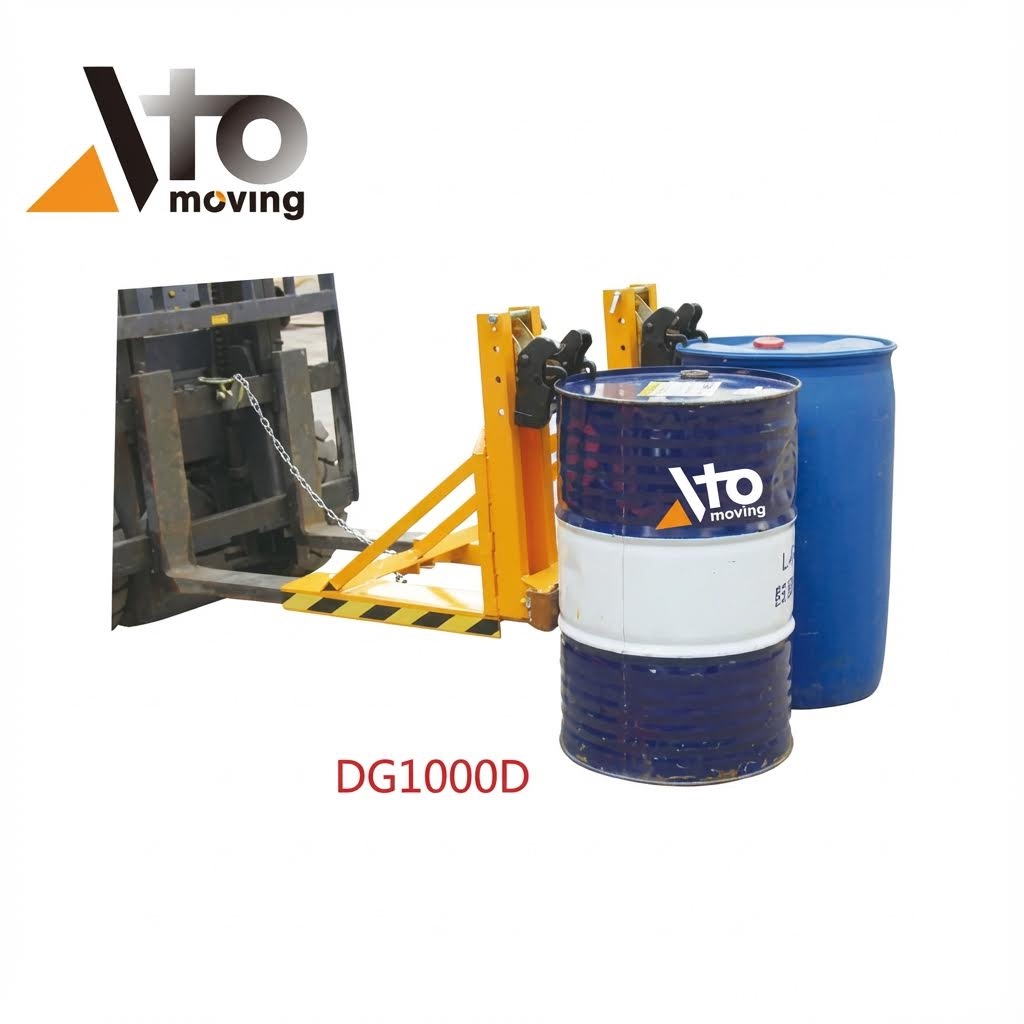

DG1000 Series Heavy Duty 1000kg Forklift Barrel Grabber with Double Grips
- Dual-Head Payload: Handles two drums simultaneously with a combined Safe Working Load (SWL) of 1000kg (2205 lbs), doubling operational throughput.
- Mechanical Actuation: Gravity-driven clamping mechanism operates without hydraulic or electrical connections, ensuring zero-energy consumption during gripping.
- Universal Interface: Features 150mm x 55mm (5.9 in x 2.2 in) fork pockets compatible with standard Class II and Class III forklift carriages.
- Adjustable Engagement: Grip heads accommodate a vertical grab range of 465mm – 750mm (18.3 in – 29.5 in) for varying drum geometries.
- Chime Protection: Integrated rubber belt bases and wear-resistant cushions prevent deformation of steel or plastic drum rims during transport.
The DG1000 Series forklift barrel grabber is a heavy-duty attachment engineered to convert standard forklifts into high-volume drum handlers. Designed for purely mechanical operation, this unit utilizes an automatic “Eagle-Grip” mechanism that eliminates the need for hydraulic diversion valves or electrical harnessing, significantly reducing installation time and maintenance requirements. The chassis supports a dual-load configuration capable of lifting two steel or plastic drums simultaneously, rated for a total capacity of 1000kg (2205 lbs). Structural stability is maintained via a 1150mm (45.3 in) load center, while the 750mm (29.5 in) long fork sleeves ensure deep engagement with the host machine. Integrated rubber belt supports and cushion pads dampen vibration, protecting the drum surfaces and preventing cosmetic marring during high-frequency logistics operations.
Model for Forklift Barrel Grabber
| Model | DG1000A | DG1000B | DG1000C | DG1000D | DG1000E | |
|---|---|---|---|---|---|---|
|
Capacity
|
kg |
500*2
|
500*2
|
500*2
|
500*2
|
500*2
|
|
Net Weight
|
kg
|
71
|
86
|
71
|
80
|
91
|
|
Overall Size
|
mm
|
910*760*870
|
910*760*870
|
910*760*850
|
910*760*850
|
910*760*850
|
|
Load Center
|
mm |
1150 |
1150 |
1150 |
1150 |
1150 |
|
Grab Min. Height
|
mm |
525
|
465
|
525
|
465
|
465
|
|
Grab Max. Height
|
mm |
750
|
690
|
750
|
690
|
690
|
|
Fork sleeve opening(L*W)
|
mm
|
150*55
|
150*55
|
150*55
|
150*55
|
150*55
|
|
Fork sleeve inner width
|
mm |
430
|
450
|
450
|
450
|
450
|
|
Fork sleeve outer width
|
mm
|
750
|
750
|
750
|
750
|
750
|
|
Fork sleeve length
|
mm |
750
|
750
|
750
|
750
|
750
|
Request an Equipment Quote
Find More Forklift Attachment
Performance
High-Throughput Dual Drum Configuration

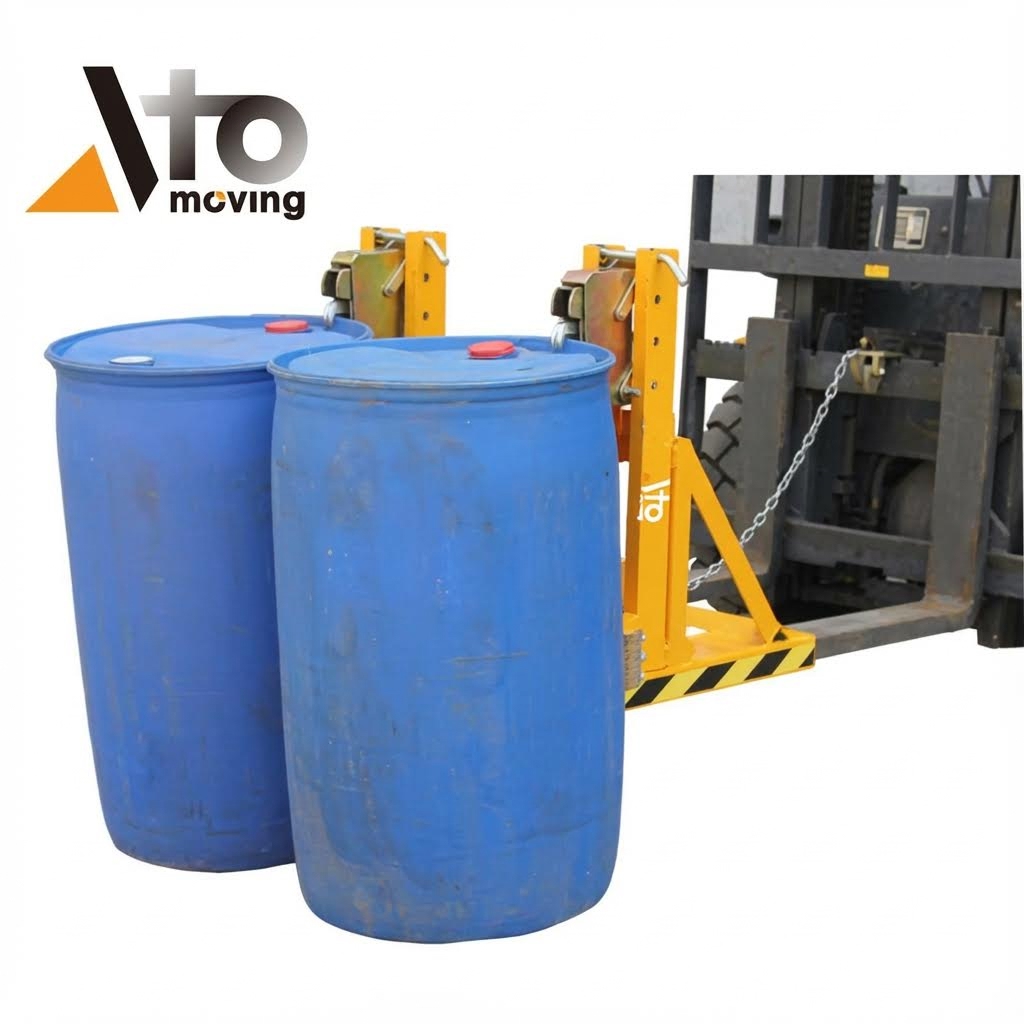

The DG1000 maximizes warehouse logistics efficiency by enabling the transport of two units per cycle. Unlike single-grip attachments, this engineered system supports a distributed load of 500kg (1102 lbs) per head, achieving a total capacity of 1000kg (2205 lbs). The vertical grab height is adjustable between 465mm and 750mm (18.3 in – 29.5 in), allowing the mechanism to securely engage various drum standards (e.g., ISO, ANSI) without manual tool recalibration. This 100% increase in handling volume per trip directly reduces forklift engine hours and operator fatigue in high-velocity distribution centers.
Zero-Maintenance Mechanical Actuation
Engineered for reliability in harsh environments, the clamping mechanism operates independently of the forklift’s power systems. It utilizes a gravity-actuated friction lock that engages the drum chime immediately upon lifting. This design removes failure points associated with hydraulic hoses, O-ring seals, or solenoid valves. With a net weight starting at just 71kg (157 lbs), the attachment minimizes parasitic load on the forklift carriage while ensuring consistent grip force proportional to the load weight. This eliminates the slippage risks often associated with vacuum or magnetic lifters during rapid acceleration or braking.
Universal Interface and Load Stability
The structural chassis is built around standardized fork sleeves measuring 750mm (29.5 in) in length with a cross-sectional aperture of 150mm x 55mm (5.9 in x 2.2 in). This geometric profile ensures a tight interference fit with standard forklift tines, significantly reducing load oscillation at the 1150mm (45.3 in) load center. Furthermore, the inclusion of heavy-duty rubber belt bases supports the lower drum sidewall, absorbing kinetic energy. This contact protection is critical for preserving the structural integrity of thinned-walled plastic drums and preventing chime deformation on steel barrels.
Frequently Asked Questions
What is the lifting capacity of a forklift barrel grabber?
The lifting capacity of a typical forklift barrel grabber ranges from 500 kg to 1,000 kg for single-barrel models. Heavy-duty versions can handle up to 1,500 kg. Always follow the manufacturer’s rated capacity and do not exceed the safe load limit of the forklift or attachment.
How do you install a forklift barrel grabber onto a forklift?
First, lower the forklift forks to the ground and ensure the forklift is off and stable. Slide the attachment’s fork sleeves over the forklift forks, then insert and tighten the locking pins or bolts to secure it. Check that the attachment is firmly fixed and does not shift before lifting any barrels.
What safety precautions should operators take when using a forklift barrel grabber?
Operators should inspect the attachment and barrel for damage before use, ensure a tight and secure grip, and never exceed the rated capacity. Keep the barrel low to the ground while moving, drive slowly, avoid sharp turns or sudden stops, and only use the attachment for its designed purpose. Proper training is also required for safe operation.
