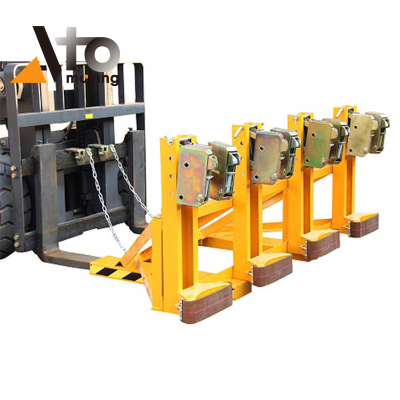

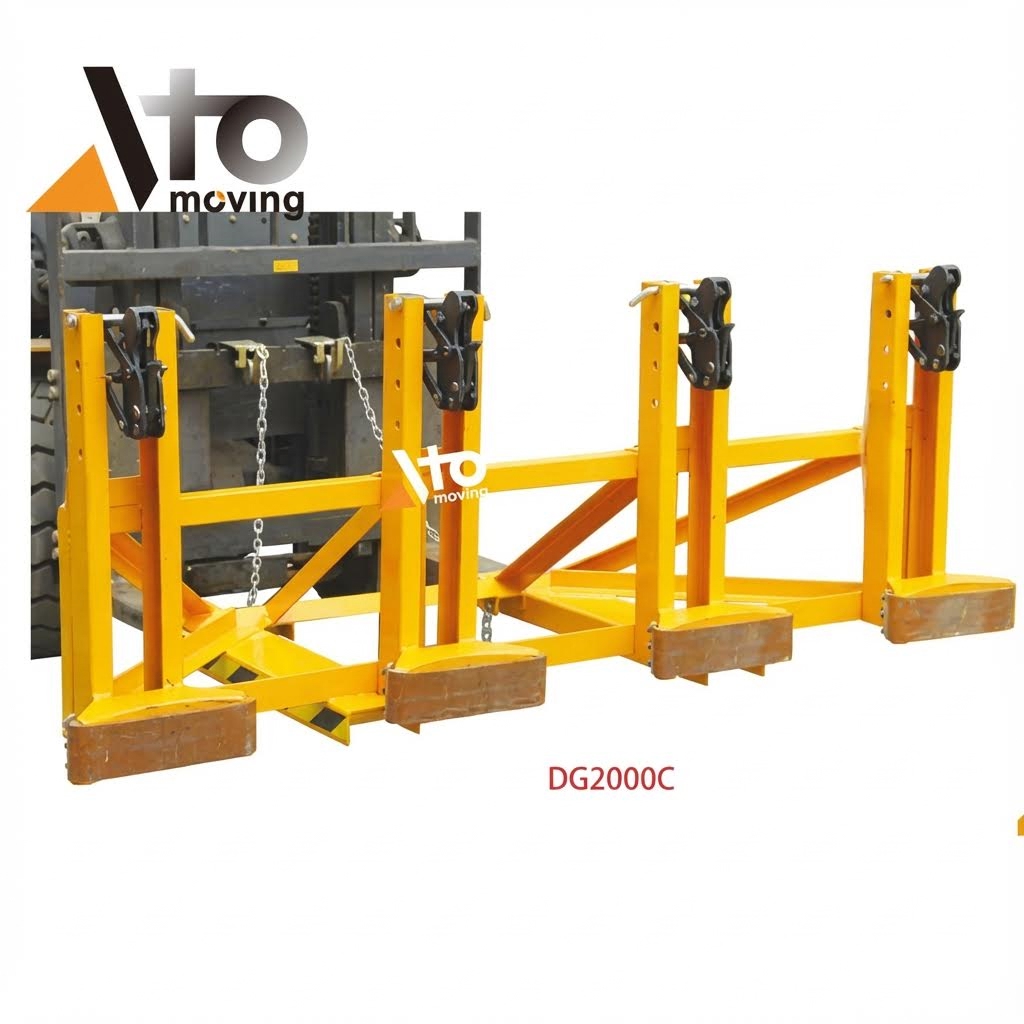

DG2000 Series Heavy Duty 2000kg Drum Lifter Forklift Attachment
- Quad-Drum Throughput: Simultaneously transports four drums with a total rated capacity of 2000kg (4409 lbs), reducing material handling cycle times by up to 75%.
- Universal Compatibility: Engineered jaw geometry securely grips steel, plastic, and fiber drums without manual adjustment or hydraulic intervention.
- Zero-Connection Installation: Features 900mm (35.4 in) deep fork pockets for immediate mounting on standard forks, requiring no hydraulic or electric lines.
- Gravity-Actuated Locking: Mechanical clamping force increases proportionally with the 500kg (1102 lbs) per-drum load, ensuring safety on ramps and uneven surfaces.
The DG2000 Series is a heavy-duty drum lifter forklift attachment designed for high-volume logistics, chemical processing, and oil distribution environments. Unlike standard single-drum handlers, this unit utilizes a robust mechanical linkage system to lift and transport four drums simultaneously, achieving a maximum safe working load (SWL) of 2000kg (4409 lbs). The attachment is engineered with a substantial structural chassis—weighing 170kg (375 lbs)—to maintain rigidity under full load. Featuring precise fork pockets measuring 150 x 55 mm (5.9 x 2.2 in), the DG2000 slides directly onto existing Class II or Class III forklift tines, converting a standard counterbalance truck into a specialized bulk drum handler in seconds. Its purely mechanical design makes it compatible with steel, plastic, and fiber drums, offering a maintenance-free solution for facilities handling mixed packaging inventory.
Model for Drum Lifter Forklift Attachment
| Model | DG2000A | DG2000B | |
|---|---|---|---|
|
Rated Capacity
|
kg
|
500×4
|
500×4
|
|
Acceptable Drum Type
|
|
Steel, plastic, fiber
|
Steel, plastic, fiber
|
|
Net Weight
|
kg |
140
|
170
|
|

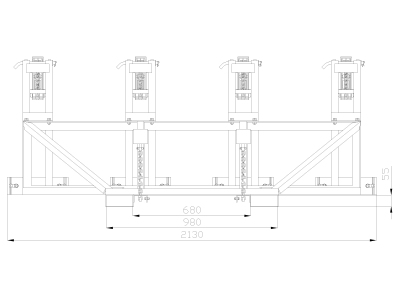

Overall Size
|
mm |
2190x1080x850
|
2190x1110x850
|
|

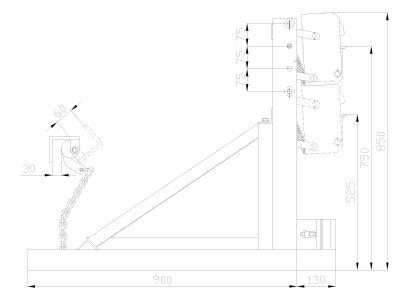

Fork Pockets (LxWxH)
|
mm
|
900x150x55
|
900x150x55
|
|
Fork Opening
|
mm |
830
|
830
|
Request an Equipment Quote
Find More Forklift Attachment
Performance

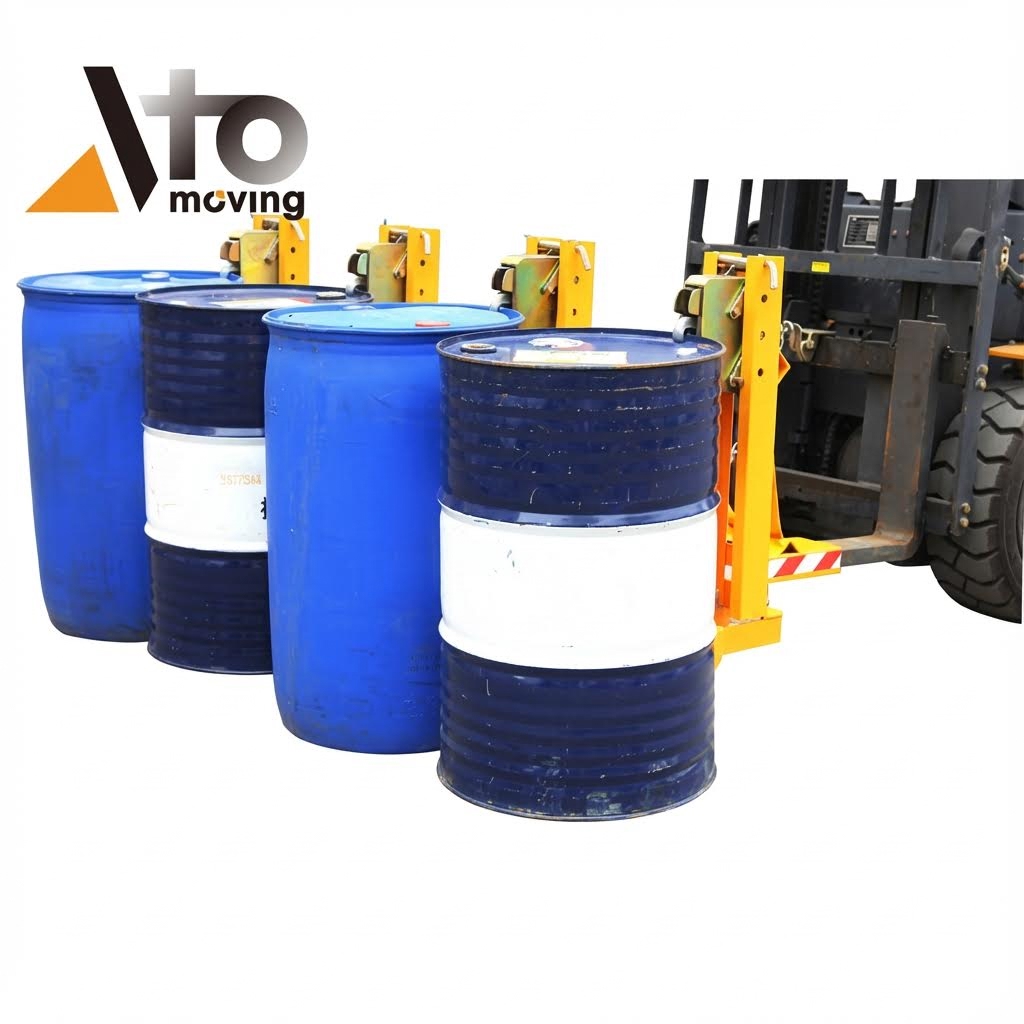

High-Volume Payload Configuration (500kg x 4)
The DG2000 is defined by its ability to maximize operational efficiency through bulk handling. The structural frame supports a 4 x 500kg (4 x 1102 lbs) payload configuration, allowing a single operator to move two metric tons of material in one pass. With an overall width of 1110mm (43.7 in) and length of 2190mm (86.2 in), the attachment effectively disperses the load across the forklift carriage. This high mass-to-load ratio is critical for high-throughput warehouses, as it significantly reduces travel distance and fuel consumption per drum compared to single or double-drum lifters.
Self-Locking Mechanical Clamping System
Safety in drum handling is achieved through a gravity-actuated clamping mechanism (Eagle-Grip style) that requires no external power source. The jaws are engineered to engage automatically when the fork carriage is lifted. The clamping torque applied to the drum rim is directly proportional to the drum’s weight; a fully loaded 500kg (1102 lbs) drum generates maximum locking force, preventing slippage even when traversing ramps or engaging with dock levelers. This mechanism is universally compatible with the rim profiles of steel, plastic, and fiber drums, eliminating the need for tool-based adjustments when switching between drum types.
Universal Fitment & Structural Specs
The DG2000 prioritizes rapid deployment and compatibility. The chassis features reinforced fork pockets measuring 900mm (L) x 150mm (W) x 55mm (H) (35.4 x 5.9 x 2.2 in), designed to accommodate standard forklift tines securely. With a fixed fork spread dimension suitable for standard carriages, the unit ensures optimal load centering, reducing the overturning moment on the forklift. The inclusion of a heavy-duty safety chain system anchors the attachment to the forklift mast, ensuring the unit remains static relative to the forks during rapid braking or acceleration. As a purely mechanical system, it eliminates potential failure points associated with hydraulic hoses, seals, or electrical solenoids.
Frequently Asked Questions
What is a drum lifter forklift attachment and how does it work?
A drum lifter forklift attachment is a specialized tool that mounts onto forklift forks to safely lift, transport, and handle steel or plastic drums. It uses a mechanical or automatic clamping mechanism to grip the drum’s rim or body securely. The attachment is operated by the forklift’s lifting function, allowing stable and damage-free movement without manual handling.
How do I install a drum lifter forklift attachment on my forklift?
First, lower the forklift forks to the ground and turn off the forklift. Slide the drum lifter’s fork sleeves over the forklift forks, then secure it with locking pins or bolts to prevent movement. Check that the attachment is firmly fixed and balanced before use.
What is the weight capacity of a drum lifter forklift attachment?
Most standard drum lifter forklift attachments have a weight capacity of 500 kg to 1,000 kg for single drums. Heavy-duty models can support up to 1,500 kg. Always follow the manufacturer’s rated capacity and do not exceed the safe load limit of the forklift.
