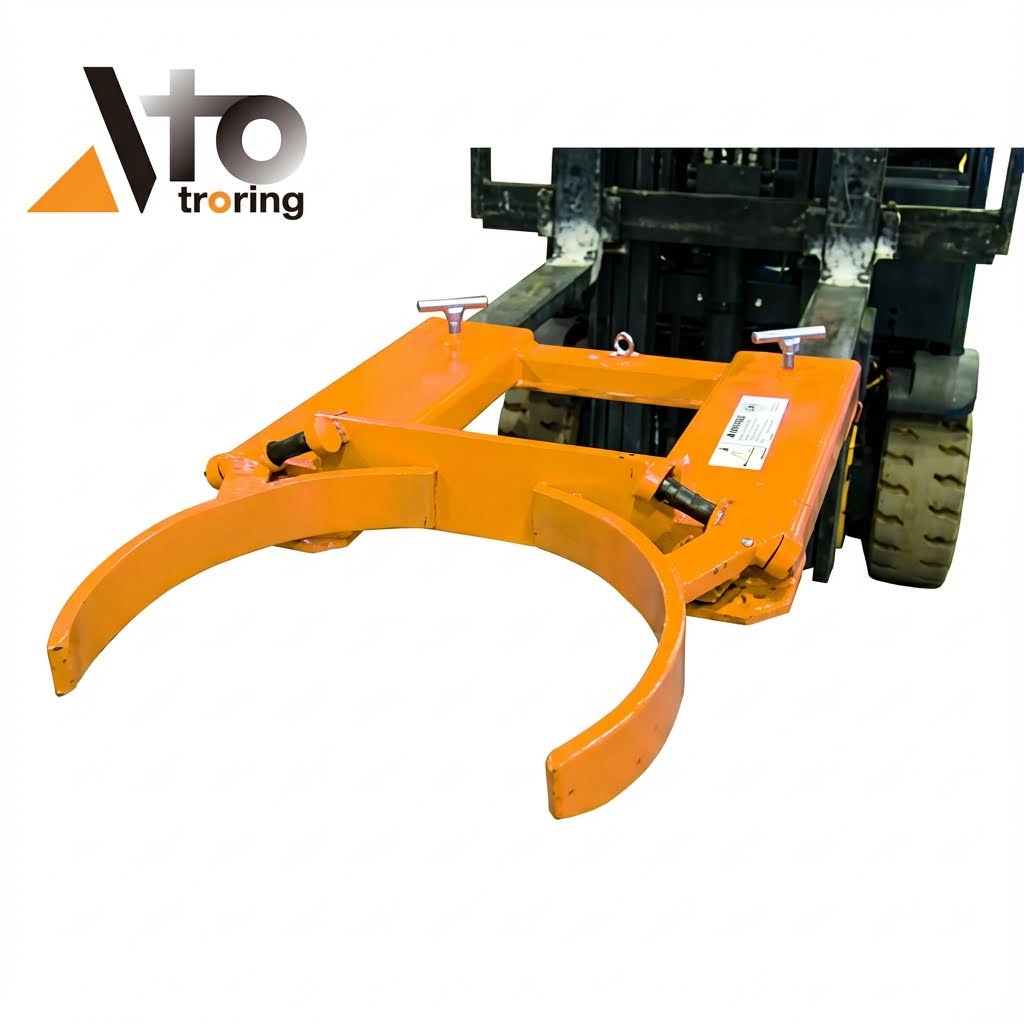

Quick Assembled Mounted Forklift Drum Attachments_1_1_1

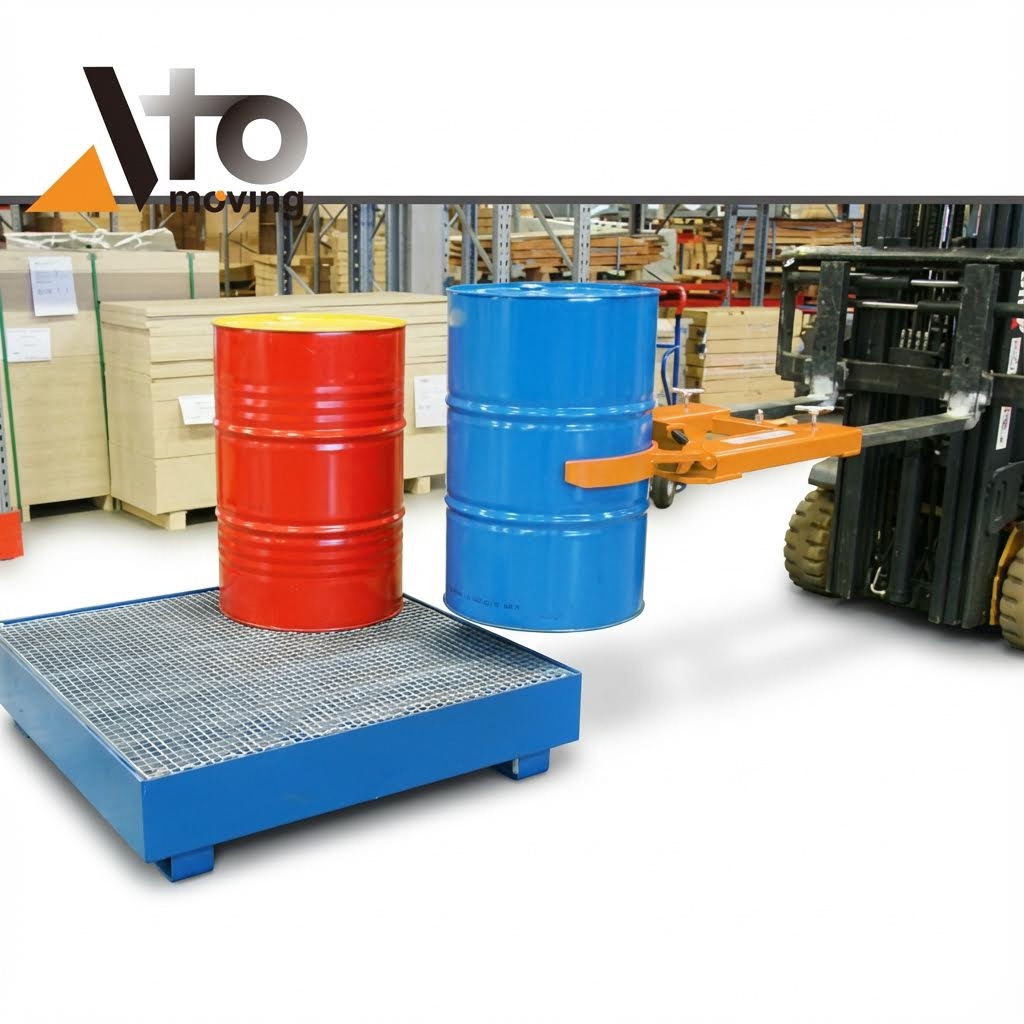

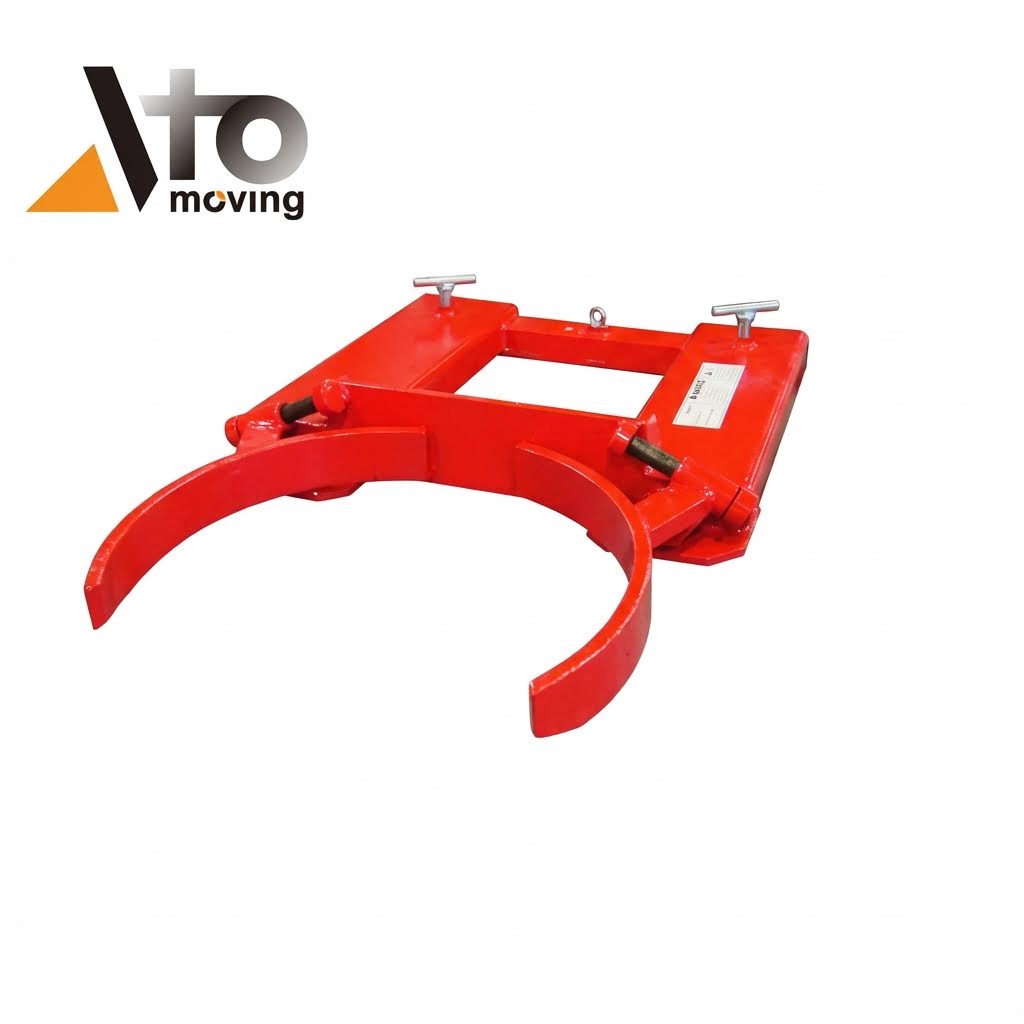

Quick Assembled Mounted Forklift Drum Attachments_1_1_2

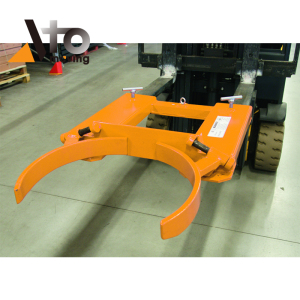

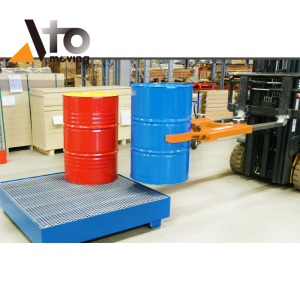

DG40 Quick Assembled Mounted Forklift Drum Attachments

Universal Vessel Compatibility: Adjustable gripping head secures both Steel and Plastic (Poly) drums with volumes of 114L (30 gal) or 208L (55 gal).
Zero-Energy Actuation: purely mechanical friction-lock engages automatically, supporting Safe Working Loads (SWL) up to 680kg (1500 lbs).
Rapid Deployment: Features $178 \times 57$ mm ( $7.0 \times 2.25$ in) fork pockets for instant slide-on mounting without hydraulic interventions.

The DG40 Series forklift drum attachments are precision-engineered for the efficient transport of rimmed vessels in warehousing and chemical processing sectors. Unlike complex hydraulic systems, this unit utilizes a purely mechanical, gravity-actuated locking mechanism that requires no electrical connections or driver dismounting. The robust all-steel chassis weighs just 57kg (125 lbs), preserving the host truck’s residual capacity while delivering a rated lift capacity of 680kg (1500 lbs). Designed for versatility, the adjustable beak design allows operators to seamlessly switch between handling standard Steel and Polyethylene drums, significantly reducing changeover time in mixed-inventory facilities.

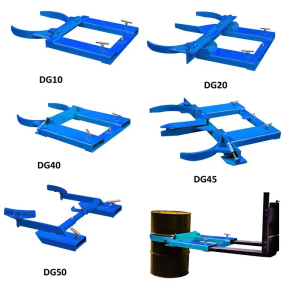

Model for Forklift Drum Attachments

Model	DG10	DG20	DG30	DG40	DG45	DG50
Drum Type	Single Steel Drum	Double Steel Drum	Adjustable, Single Steel Drum	Adjustable, Steel/Plastic Drum	Adjustable, Double Steel Drum	Adjustable, Single Ploy Drum
Capacity (lbs/per drum)	1500	1500	1500	1500	1500	1000
Drum (Gallon)	55	55	30 or 55	30 or 55	30 or 55	30 or 55
Fork Pockets (inch)	5.5×2	7×2.25	5.5×2	7×2.25	7×2.25	5.375×1.5
Net Weight (lbs)	121	198	115	125	194	41

Request an Equipment Quote

Find More Forklift Attachment

LM800/LG800 Vertical Drum Lifter Forklift Barrel Dumper

HK265/HK285/HK300 Forklift Mounted Drum Handler for Forklift

DG1000 Series Heavy Duty 1000kg Forklift Barrel Grabber with Double Grips

DG2000 Series Heavy Duty 2000kg Drum Lifter Forklift Attachment

YL4/YL6 Barrel Lifter for Forklift

Performance

Automatic Mechanical Friction Lock

The DG40 eliminates potential failure points associated with hydraulic hoses and electrical solenoids by employing a load-derived clamping system. Upon lifting, the jaw assembly automatically engages the drum rim, generating a clamping force directly proportional to the payload mass. This ensures that heavier loads, up to the 680kg (1500 lbs) limit, are gripped with increased intensity, preventing slippage during transport. The mechanism automatically resets and releases only when the drum is fully deposited and fork pressure is relieved, ensuring a safe, hands-free operational cycle.

Adjustable Geometry for Mixed Media

To address the challenge of handling diverse inventory, the DG40 features an adjustable gripping head tailored for variable rim designs. While standard grabs often fail on softer materials, this unit is engineered to securely handle both rigid Steel and deformable Plastic (Poly) drums. It accommodates standard industrial volumes of 114L (30 gal) and 208L (55 gal), allowing a single attachment to service the entire facility. This versatility reduces capital expenditure by negating the need for multiple material-specific attachments.

Structural Integrity & Universal Fitment

Constructed from heavy-duty welded steel, the attachment is designed to withstand the dynamic forces of start-stop warehouse maneuvering. It interfaces with the forklift via dual fork pockets measuring $178 \times 57$ mm ( $7.0 \times 2.25$ in), compatible with most Class II and Class III carriages. Installation is tool-free; the unit slides onto the tines and is secured via heavy-duty hand-tightened cam screws (T-bolts). This rigid connection ensures the load center remains stable during braking and cornering, maintaining compliance with warehouse safety standards.

Frequently Asked Questions

What types of forklift drum attachments are available?

Common types of forklift drum attachments include automatic drum grabbers, double-drum handlers, drum tilters and rotators, fork-mounted drum craddles, and vertical drum lifters. These attachments are designed for safe lifting, moving, pouring, and stacking steel, plastic, or fiber drums in industrial and warehouse environments.

How much weight can forklift drum attachments lift?

Most standard forklift drum attachments have a safe working load capacity of 500 kg to 1,000 kg per drum. Heavy‑duty models can lift up to 1,500 kg. Always follow the manufacturer’s rating and do not exceed the forklift’s maximum lift capacity.

What types of drums can forklift drum attachments handle?

Forklift drum attachments can handle standard 55‑gallon steel drums, plastic drums, fiber drums, and tight‑head drums. Many models feature universal or adjustable gripping systems to fit different drum diameters and materials, making them widely used in chemical, food, pharmaceutical, and manufacturing industries.
