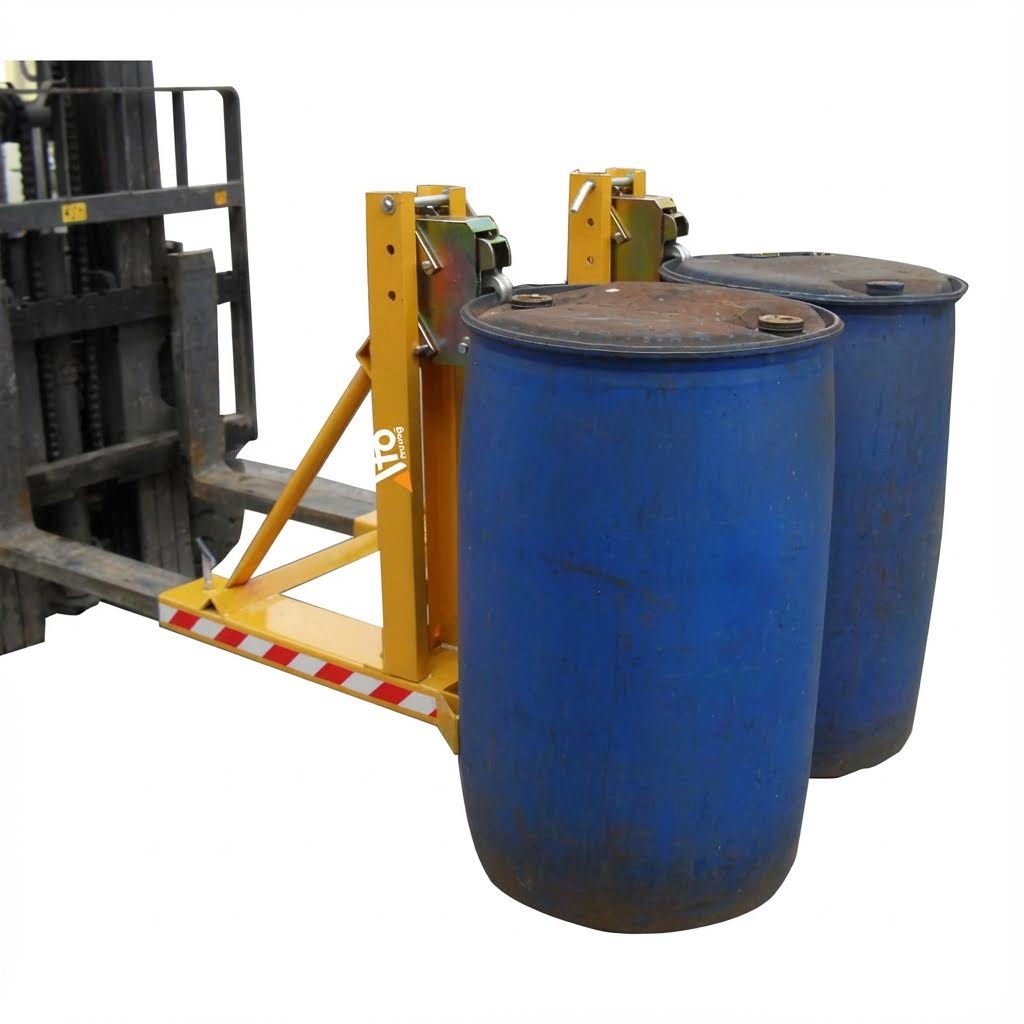

Double Grips 55 Gallon Drum Forklift Attachment Drum Transporter_1_1_4

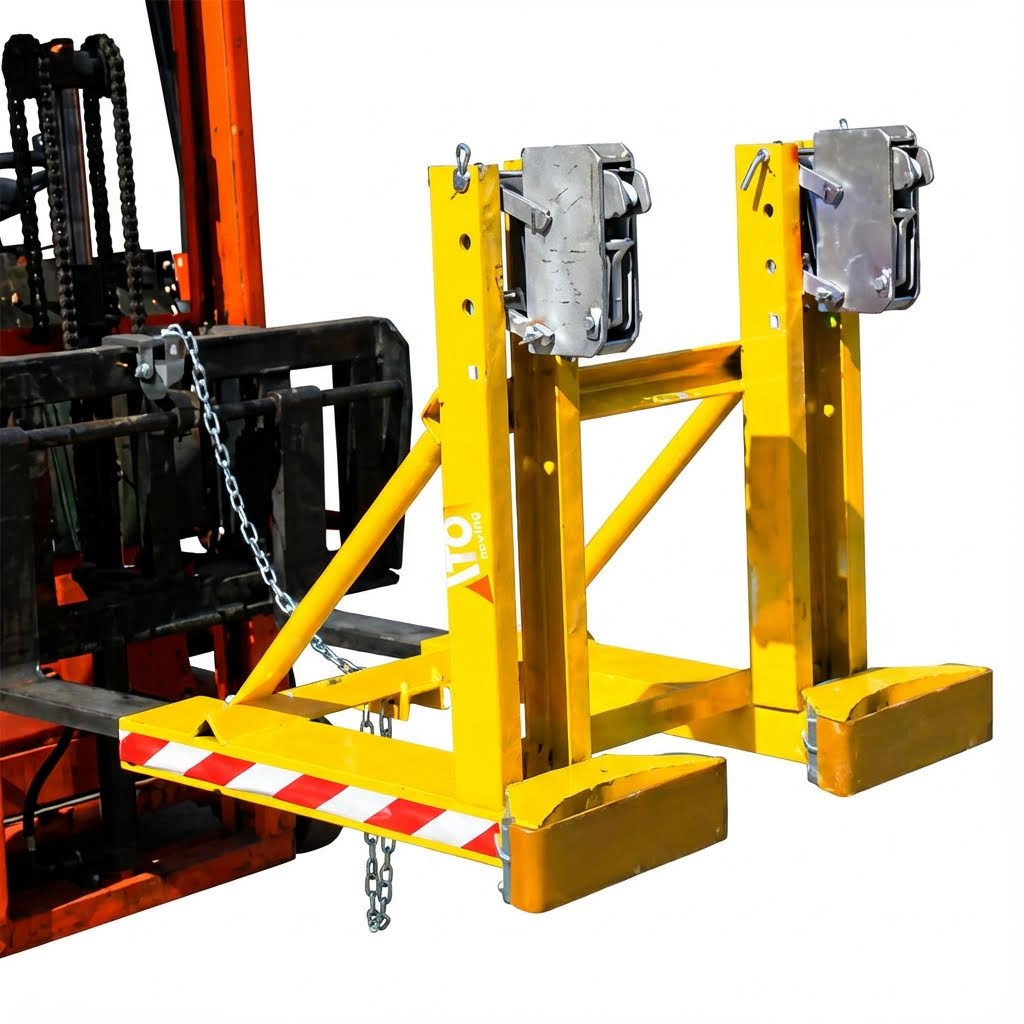

Double Grips 55 Gallon Drum Forklift Attachment Drum Transporter_1_1_5

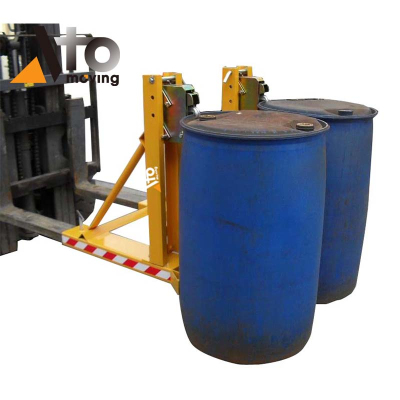

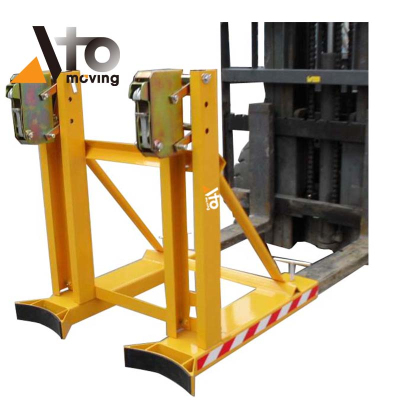

DG720 Double Grips 55 Gallon Drum Forklift Attachment Drum Transporter

- High-Capacity Dual Handling: Simultaneously transports two drums with a combined Safe Working Load (SWL) of 720kg (1587 lbs).
- Gator Grip Technology: Features a mechanical auto-lock system that utilizes drum weight to secure steel, plastic, or fiber units.
- Universal Fork Fitment: Engineered with 150x55mm (5.9×2.2 in) fork pockets for rapid integration with standard Class II/III forklifts.
- Adjustable Head Positioning: Vertical adjustment capabilities accommodate varying drum heights including 110L (30 gal) and 210L (55 gal) standards.

The DG720 Series is a high-performance 55 gallon drum forklift attachment engineered to optimize throughput in chemical processing and industrial warehousing environments. Unlike complex hydraulic units, this mechanical drum transporter utilizes a “Gator Grip” linkage that converts the drum’s own mass into clamping force, eliminating the need for hydraulic connections or driver dismounts.

Designed for high-volume operations, the dual-head assembly handles steel, plastic, and fiber drums with a rated capacity of 360kg (794 lbs) per head, totaling a 720kg (1587 lbs) system capacity. The unit mounts securely to the forklift carriage via heavy-duty, hand-tightened safety screws, ensuring rigid stability during transit. With a compact structural design, it maintains a tight turning radius, allowing operators to maneuver confidentially in aisles as narrow as 2.5m (8.2 ft).

Model for 55 Gallon Drum Forklift Attachment

Model		DG720A	DG720B
Rated Capacity	KG	360×2	360×2
Acceptable Drum Type		Steel, plastic, fiber	Steel, plastic, fiber
Net Weight		62	77
Overall Size		930x910x850	960x910x850
Fork Pockets (LxWxH)		750x150x55	750x150x55
Fork Opening		590	590

Request an Equipment Quote

Find More Forklift Attachment

360KG Single Grip Forklift Mounted Drum Mover

DG500 Series Heavy Duty 500kg Forklift Drum Lifter With Single Grips

DG1000 Series Heavy Duty 1000kg Forklift Barrel Grabber with Double Grips

DG2000 Series Heavy Duty 2000kg Drum Lifter Forklift Attachment

YL4/YL6 Barrel Lifter for Forklift

Performance

Gravity-Actuated Mechanical Locking System

The DG720 eliminates failure points associated with hydraulic lines by utilizing a gravity-actuated locking mechanism. As the forks are raised, the twin gripping heads automatically engage the drum rim. The clamping force is directly proportional to the load weight—handling up to 360kg (794 lbs) per drum—ensuring that heavier loads result in a tighter grip. This “anti-rollback” design ensures the jaws remain mechanically locked until the drum is fully deposited and the weight is released, reducing the risk of accidental drops during transport.

Multi-Material Compatibility and Adjustability

Procurement and facility managers often face the challenge of handling mixed drum inventories. This attachment is engineered to universally accept Steel, Plastic, and Fiber drums without requiring tool changes or downtime. The grip head assembly features vertical adjustability to accommodate standard 210 Litre (55 Gallon) drums as well as smaller 110 Litre (30 Gallon) units. This flexibility consolidates equipment requirements, allowing a single attachment to manage diverse SKU profiles.

Precision Fitment and Structural Integrity

To ensure compatibility with standard forklift carriages, the chassis is constructed with precision-welded fork pockets measuring 150mm (5.9 in) in width and 55mm (2.2 in) in height. The attachment is secured to the truck forks using dual T-bolt hand screws, which prevent horizontal slippage during braking or cornering maneuvers. The unit’s geometry is optimized to keep the load center close to the forklift mast, minimizing the impact on the truck’s residual lifting capacity.

Frequently Asked Questions

What is a 55 gallon drum forklift attachment and how does it work?

A 55 gallon drum forklift attachment is a specialized tool designed to lift, move, and handle standard 55-gallon steel or plastic drums using a forklift. It usually mounts directly onto forklift forks and uses mechanical or automatic gripping mechanisms to securely hold the drum during transport. The attachment locks onto the drum’s top rim or body, allowing safe horizontal or vertical movement without manual lifting.

What is the weight capacity of a 55 gallon drum forklift attachment?

Most 55 gallon drum forklift attachments have a weight capacity ranging from 800 lbs to 2,000 lbs (approximately 360 kg to 900 kg) per drum. Heavy-duty models can handle higher loads for industrial use. Always follow the manufacturer’s rated capacity and ensure it does not exceed your forklift’s safe lifting limit.

How do I safely use a 55 gallon drum forklift attachment?

To safely use a 55 gallon drum forklift attachment, inspect the attachment and drum for damage before use. Securely attach it to the forklift forks and ensure the drum is firmly gripped. Keep the drum low to the ground while moving, drive slowly, and avoid sharp turns or sudden stops. Do not exceed the rated capacity, and only use the attachment for its intended purpose with compatible drums.
