Drum Cart

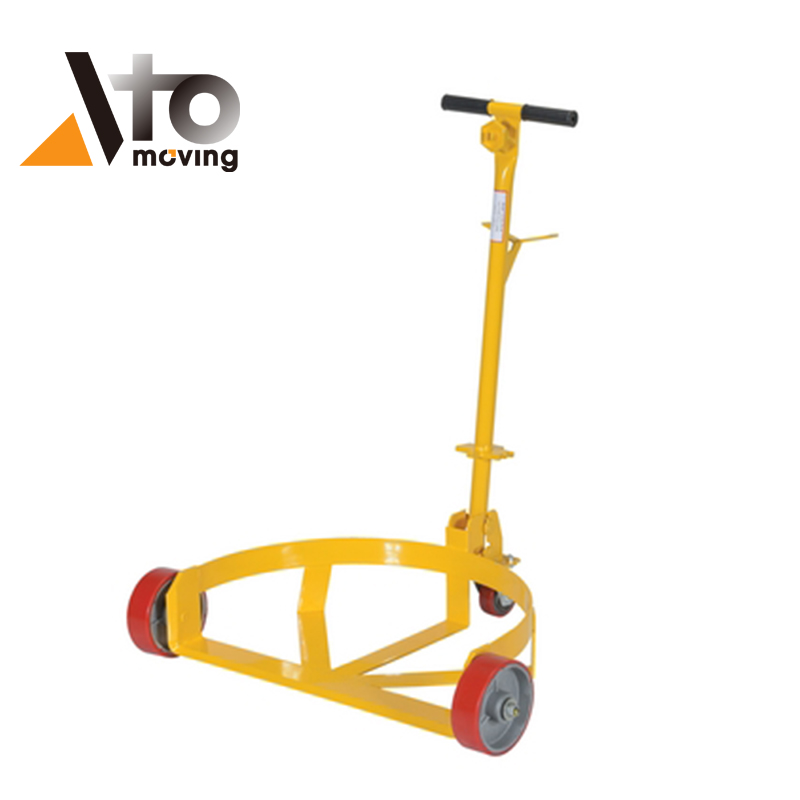

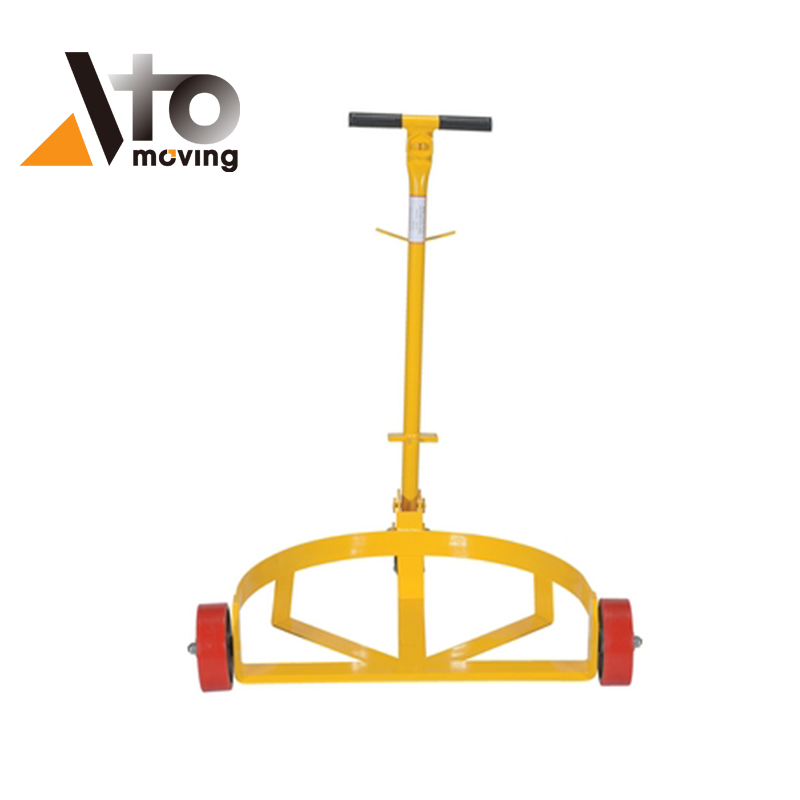

Floor Drum Cart with 500kg Capacity
- High Payload Efficiency: Engineered with a Net Weight of 15kg (33 lbs) to safely transport payloads up to 500kg (1102 lbs).
- Universal Barrel Fit: The 604mm (23.8 in) inner chassis width securely cradles standard 210L (55 gal) steel and plastic drums.
- Low Rolling Resistance: Features mm ( in) primary wheels to minimize start-up force on concrete floors.
- Geometric Stability: A 766mm (30.2 in) outer wheel track width lowers the center of gravity, preventing lateral tipping during transport.
Models for Drum Cart
| Model | DC500 | |
|---|---|---|
|
Load Capacity
|
kg |
500 |
|
Wheel Size
|
mm
|
⌀150X50 ⌀75X32
|
|
Net Weight
|
kg
|
15
|
|
Inner Wheel Distance
|
mm |
604
|
|
Outer Wheel Distance
|
mm
|
766
|
|
Overall Size
|
mm
|
622x766x989
|
Request an Equipment Quote
Find More Drum Handling Equipment
Performance
Optimized Kinematics for Fluid Transport
Handling liquid loads requires managing the “slosh effect” which dynamically shifts the Center of Gravity (CoG). The DC500 addresses this through specific chassis geometry. The Inner Wheel Distance of 604mm (23.8 in) acts as a passive restraint, leaving minimal tolerance around standard mm drums to prevent load shifting. This is complemented by a wide Outer Wheel Distance of 766mm (30.2 in), which provides a stable base that resists tipping forces even when cornering with a full 500kg (1102 lbs) load.
Tribological Efficiency & Wheel Configuration
To ensure low maintenance and ease of movement, the DC500 utilizes a specific wheel arrangement designed to reduce the coefficient of rolling friction. The primary load is supported by two fixed mm ( in) wheels, engineered to traverse expansion joints and floor debris without stalling. Steering is facilitated by a mm ( in) swivel caster. This configuration allows a single operator to initiate movement of a half-ton load with minimal input force (typically <2% of the total load weight on smooth concrete).
Corrosion-Resistant Structural Integrity
Industrial environments often expose equipment to moisture, chemical spills, and impact. The DC500 replaces standard paint with a cured powder coating, typically applied at a thickness exceeding 50 microns to ensure a hermetic seal against oxidation. Despite its lightweight profile—Net Weight: 15kg (33 lbs)—the frame utilizes high-tensile steel to achieve a safety factor suitable for industrial use. This construction eliminates the need for frequent maintenance or repainting, ensuring the unit remains operational in rigorous cycles for years.
Frequently Asked Questions
What is a drum cart and what is it used for?
A drum cart is a heavy-duty wheeled material handling tool designed to transport, tilt, and position drums safely and efficiently. It is widely used in warehouses, factories, and industrial facilities to move steel, plastic, and 55-gallon drums without manual lifting.
How do I choose the right drum cart for my needs?
To choose the right drum cart, check its weight capacity, compatibility with your drum size and material, wheel type for your floor surface, and whether you need basic transport or tilting/pouring functions. Also consider ergonomic handles, sturdy construction, and safety locking mechanisms.
What are the main safety tips for using a drum cart?
Always inspect the cart before use, secure the drum properly, and never exceed the rated load capacity. Move slowly on level ground, avoid sudden turns or tilting, and keep hands and feet clear of moving parts. Proper operator training and stable positioning help prevent accidents and injuries.
