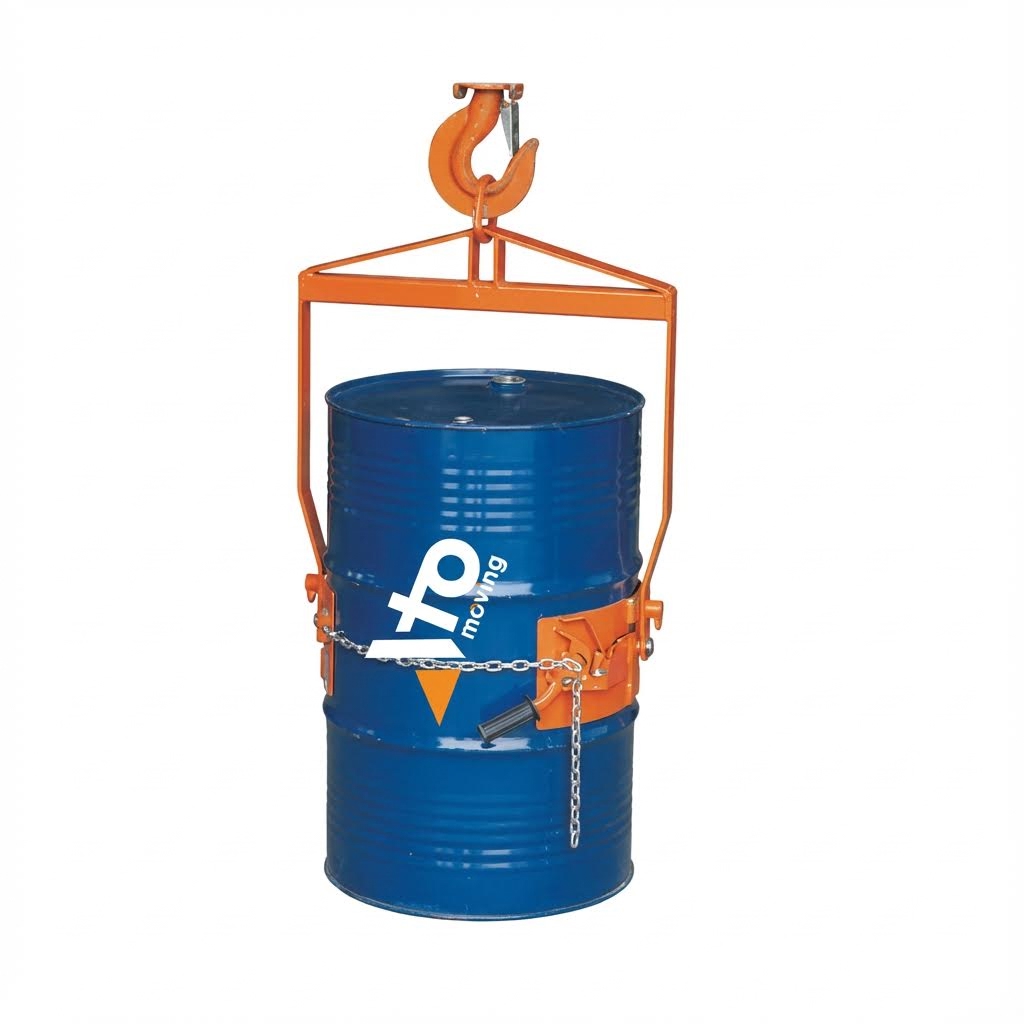

LM800/LG800 Vertical Drum Lifter Forklift Barrel Dumper

Dual-Interface Mounting: Features $150 \times 55 mm$ () fork pockets and an integrated overhead hoist eye, enabling flexible deployment via forklift or crane.
Precision Dispensing: Engineered for 360-degree rotation, allowing operators to lock drums at specific angles for the controlled pouring of hazardous or viscous fluids.
Inventory Versatility: The LM800 model securely clamps both 55-gallon steel and 200L double-rimmed plastic drums, supporting a rated load of $400 kg$ ( $882 lbs$ ).

The LM/LG Series is a heavy-duty forklift barrel dumper designed to enhance fluid management efficiency in manufacturing and chemical processing environments. Unlike static handling solutions, this attachment transforms standard lift trucks into mobile dispensing stations. Constructed with a high-rigidity steel frame, the unit is available in two configurations: the LG800 for dedicated steel drum handling (

365 kg

805 lbs

capacity) and the versatile LM800 for mixed steel and plastic drum inventories (

400 kg

882 lbs

capacity).

The system features a

720 mm

(

28.3 in

) wide footprint with

150 \times 55 mm

(

5.9 \times 2.2 in

) fork pockets, ensuring compatibility with most Class II industrial forklifts. With a net weight starting at just

(

84 lbs

), it minimizes the reduction of the forklift’s residual lift capacity while maintaining structural safety factors suitable for daily industrial use.

Model for Forklift Barrel Dumper

Model		LM800	LG800
Rated load capacity	kg	400	365
Net Weight	kg	50	38
Inner diameter of the single supporting leg	mm	150*55	150*55
Inside width of supporting legs	mm	150*55	150*55
Outside width of supporting legs	mm	720	720

Request an Equipment Quote

Find More Forklift Attachment

DG40 Quick Assembled Mounted Forklift Drum Attachments

HK265/HK285/HK300 Forklift Mounted Drum Handler for Forklift

DG1000 Series Heavy Duty 1000kg Forklift Barrel Grabber with Double Grips

DG2000 Series Heavy Duty 2000kg Drum Lifter Forklift Attachment

YL4/YL6 Barrel Lifter for Forklift

Performance

Engineered for Precise Kinematic Control

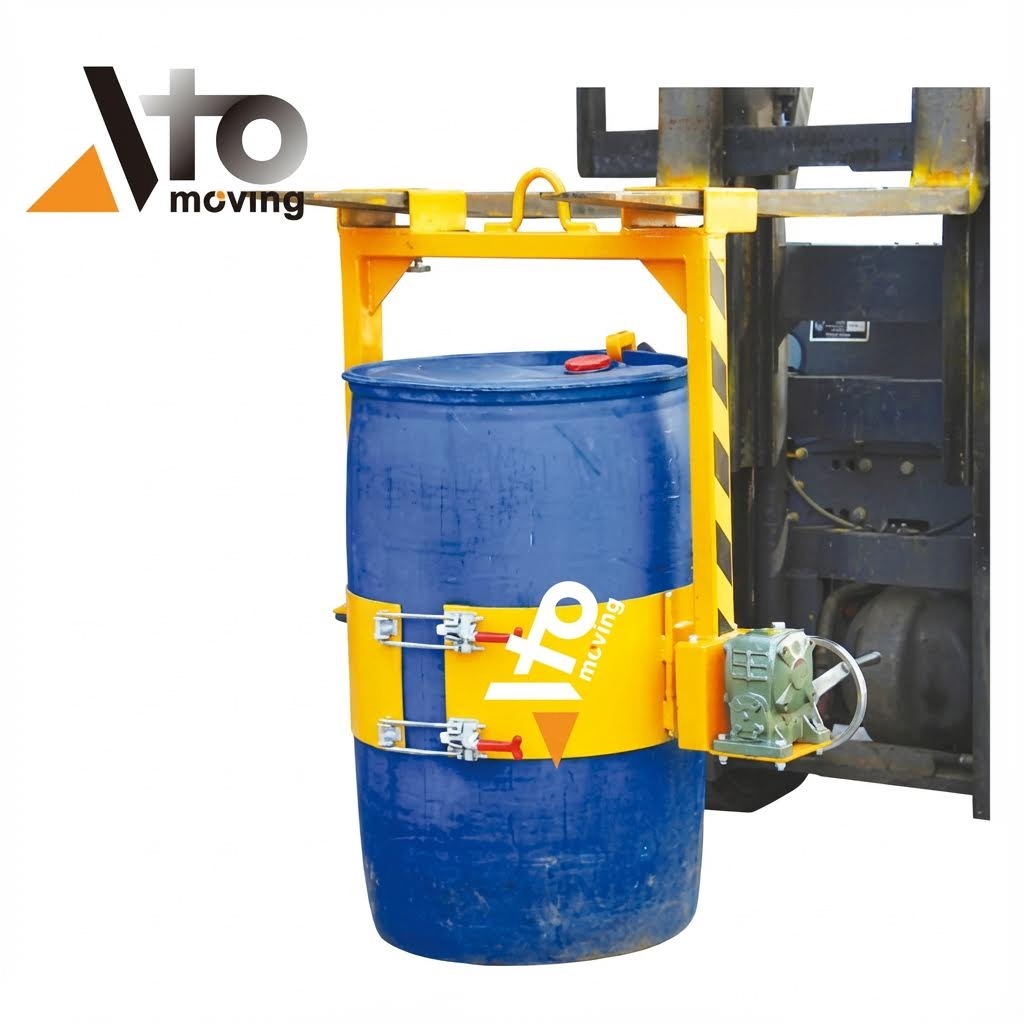

Efficient chemical handling requires more than just lifting; it requires controlled dispensing. The LM/LG series utilizes a mechanical rotation mechanism that allows the forklift barrel dumper to rotate drums a full 360 degrees. This system is designed to hold the drum stationary at any angle, which is critical when decanting viscous oils or hazardous chemicals into smaller containers. By eliminating manual tipping, facilities reduce the risk of repetitive strain injuries (RSI) and spillage, ensuring compliance with workplace safety standards while handling loads up to $400 kg$ ( $882 lbs$ ).

Universal Mounting & Structural Interface

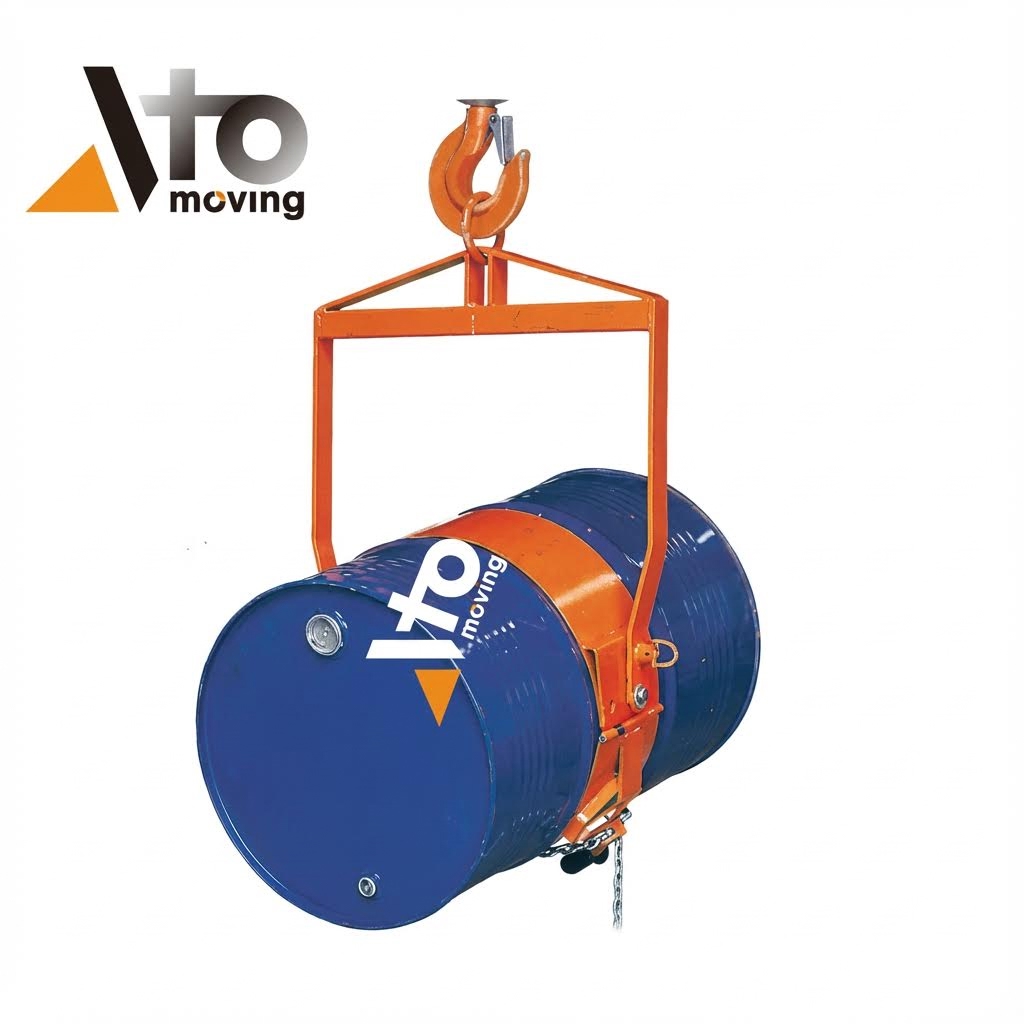

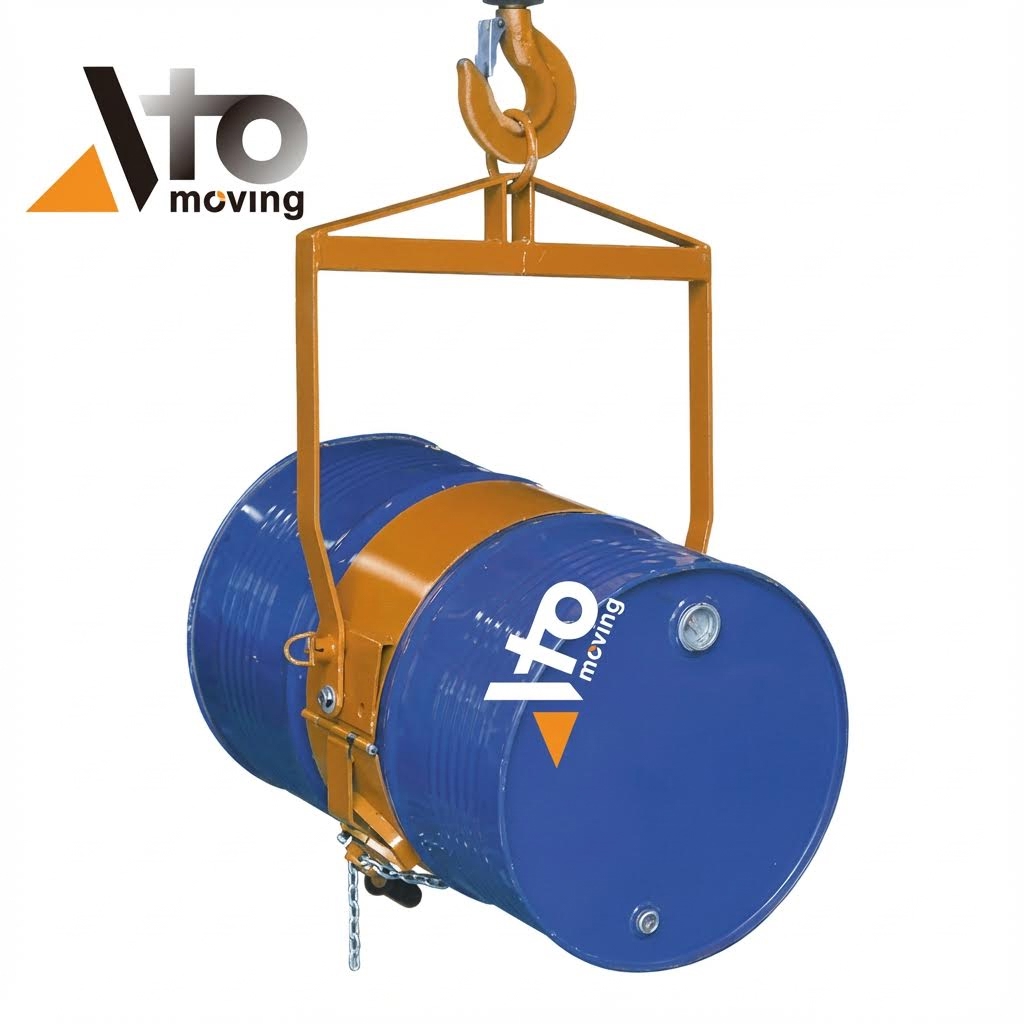

Flexibility in equipment deployment is vital for ROI. This attachment is engineered with a dual-mounting architecture. Primary engagement is achieved via fully enclosed fork pockets measuring $150 \times 55 mm$ ( $5.9 \times 2.2 in$ ), which securely fit standard forklift tines without requiring hydraulic modifications to the truck. Additionally, the unit includes a reinforced lifting eye on the main spar, allowing for overhead operation using a gantry crane or electric hoist. This dual-mode capability allows a single piece of equipment to service both racking zones (forklift) and maintenance bays (crane).

Material-Specific Clamping Optimization

The series addresses the mechanical differences between drum types through distinct model engineering.

LG800 Model: Optimized specifically for rigid 55-gallon steel drums, offering a lightweight $38 kg$ ( $84 lbs$ ) deadweight and a $365 kg$ ( $805 lbs$ ) working load limit.
LM800 Model: Designed with an enhanced clamping geometry to accommodate the structural deformation of 200L double-rimmed plastic drums in addition to steel drums. It features a heavier $50 kg$ ( $110 lbs$ ) chassis to support the increased $400 kg$ ( $882 lbs$ ) capacity, making it the superior choice for facilities with mixed inventory streams.

Frequently Asked Questions

What is a forklift barrel dumper and how does it work?

A forklift barrel dumper is a hydraulic or mechanical attachment that mounts onto forklift forks to safely lift, rotate, and empty industrial drums or barrels. It secures the drum using a clamping or cradle system, then uses a hydraulic cylinder to tilt the drum forward for controlled pouring or discharging. The entire operation is powered by the forklift’s hydraulics, allowing safe, one-person operation without manual handling.

What are the key benefits of using a forklift barrel dumper in material handling?

Key benefits include improved efficiency, reduced physical strain, faster pouring cycles, and consistent material discharge. It also increases workplace safety, prevents spills, protects drums from damage, and supports compliance with industrial handling standards. Barrel dumpers are versatile, easy to install, and compatible with most standard forklifts.

How do forklift barrel dumpers improve safety during drum handling operations?

Forklift barrel dumpers improve safety by eliminating manual lifting, bending, and twisting, which reduces back and muscle injuries. They provide secure drum retention to prevent slipping, falling, or spilling, especially with heavy or hazardous materials. Controlled tilting and stable positioning also lower the risk of accidents, while keeping the operator at a safe distance from moving loads.
