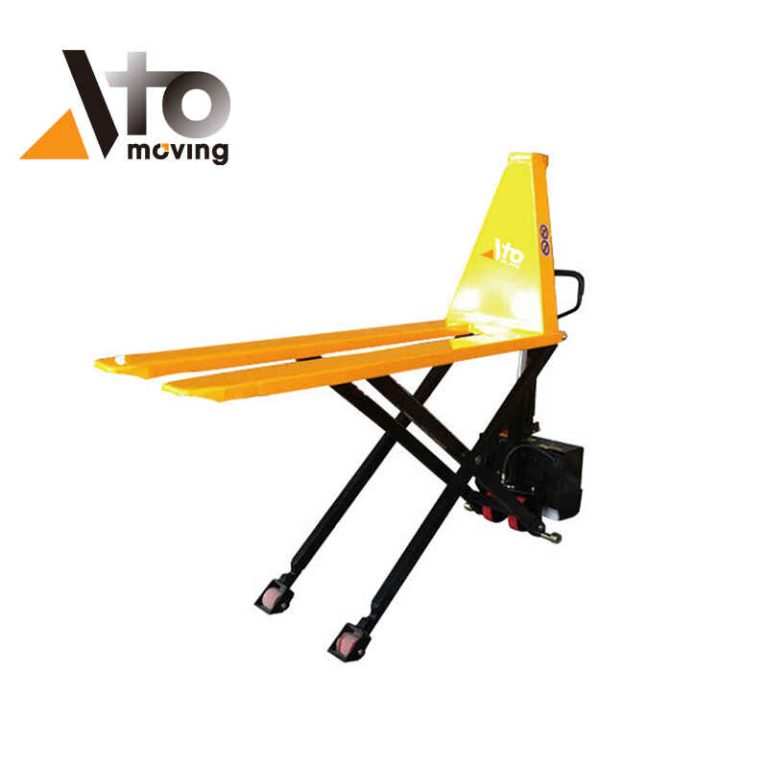

Semi-electric high lift pallet truck with yellow forks and black scissor lift mechanism, featuring an electric motor for effortless lifting operations

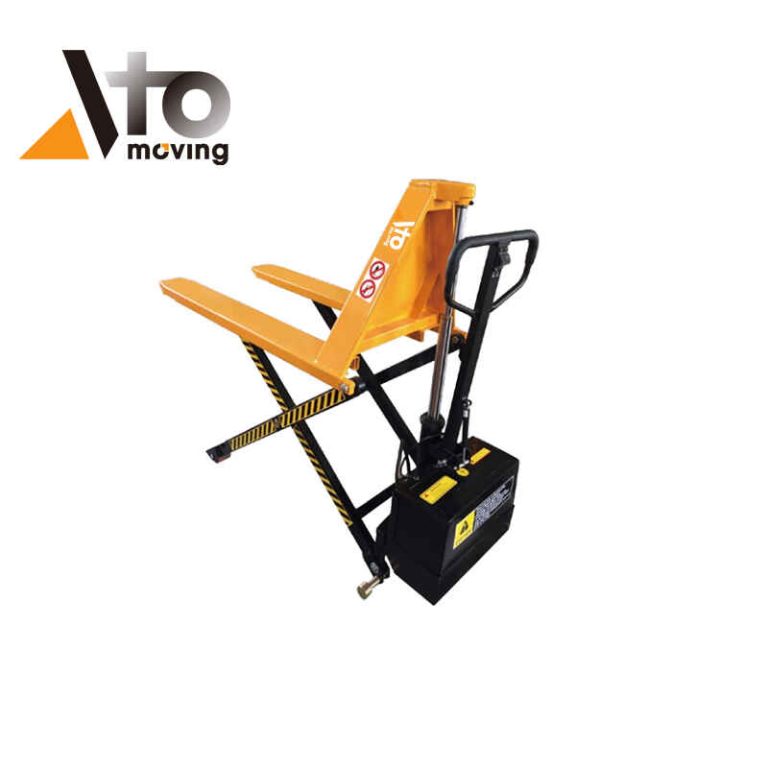

Heavy-duty semi-electric scissor lift pallet truck equipped with electric lifting system and manual push function, designed for warehouse material handling

Powered Scissor High Lift 800mm

  • Dual-Mode Actuation: Features both a manual pump and a 12V/60Ah DC electric system for operational redundancy and efficiency.
  • Ergonomic Positioning: Achieves a 800mm (31.5 in) maximum lift height, converting the unit into a static workstation to minimize operator back strain.
  • Active Stability System: Automatically engages rear-leg supports when forks elevate above 520mm (20.5 in) to ensure chassis rigidity.
  • Standardized Geometry: Equipped with 1150mm (45.3 in) forks optimized for open-bottom pallets and skids.
Request a quote
The EHLT-D Series powered high lift pallet truck is engineered to bridge the gap between transport logistics and ergonomic assembly operations. Designed specifically for handling open-bottom pallets and skids, this unit offers a rated 1000kg (2200 lbs) load capacity with a dual-actuation hydraulic system. Operators can utilize the integrated 12V/60Ah battery and DC motor for rapid, effortless lifting via a rocker switch, or revert to the manual hand pump for precision adjustments.

Engineering focus is placed heavily on static safety and load stability. The chassis incorporates a multi-stage locking architecture: a safety lock engages at 420mm (16.5 in), while lateral stabilizers ground the unit once the lift height exceeds 520mm (20.5 in). With a maximum service height of 800mm (31.5 in), this equipment effectively eliminates repetitive bending, making it an essential asset for high-throughput packing stations and manufacturing cells.

Model for Semi-electric High Lift

Model EHLT-D
Capacity(KG)
1000
1000
1000
1000
Min./Max.Height
85/800
85/800
85/800
85/800
Fork Outer Width(mm)
540
680
540
680
Fork Length(mm)
1150
1150
1150
1150
Battery(V/AH)
12/60
12/60
12/60
12/60
Voltage(V)
220~240/12
220~240/12
220~240/12
220~240/12
Service Weight(KG)
140
146
165
171
Happy warehouse worker operating a forklift for material handling, surrounded by stocked shelves in an organized warehouse environment

Request an Equipment Quote

More Material Handling Equipment

An orange semi-electric order picker with a vertically extending mast, designed for efficient material handling and order picking in a warehouse
semi electric order picker
Compact orange aerial work platform with safety guardrails and base control panel, designed for safe elevation in maintenance and stock picking tasks.
Mini Model Aerial Platform
Yellow hydraulic pallet truck with a long handle for manual lifting and transporting of pallets in industrial settings
Hydraulic Pallet Truck 2500KG/3000KG
Bright yellow manual pallet jack with a black handle for lifting and transporting pallets in commercial and industrial settings.
Hydraulic Pallet Truck 3500KG
Bright yellow walkie pallet truck with a black steering handle, designed for manually transporting pallets in warehouses and storage facilities
Walkie Pallet Truck, Heavy Duty Hand Pallet Truck 5000KG

Performance

Hybrid Hydraulic Power Architecture

Unlike standard manual high-lifters, this unit integrates a 12V/60Ah industrial battery and an on-board charger compatible with 220~240V inputs. The DC power unit allows operators to raise 1000kg (2200 lbs) loads to full height without physical exertion, directly impacting shift productivity. Crucially, the system maintains operational redundancy; in the event of battery depletion, the hydraulic cylinder can still be actuated manually, ensuring zero downtime in critical workflow scenarios.

Multi-Stage Stability & Safety Logic

Elevation alters the center of gravity, necessitating a rigid chassis response. This truck utilizes a dedicated scissor-lift mechanism that transforms the mobile truck into a static workstation. A mechanical locking mechanism activates at 420mm (16.5 in) to prevent accidental lowering. Furthermore, side stabilizers automatically deploy at 520mm (20.5 in), grounding the unit to prevent lateral tipping during loading/unloading operations. Rolling is facilitated by low-friction poly-on-steel wheels, which provide durability without compromising floor protection.

Ergonomics & Load Compatibility

The design is strictly optimized for open-bottom pallets due to the scissor leg geometry. With a fork length of 1150mm (45.3 in) and available outer widths of 540mm (21.3 in) or 680mm (26.8 in), the unit accommodates standard ISO skid dimensions. By elevating loads to a maximum of 800mm (31.5 in), the equipment aligns the payload with the operator’s waist level. This engineering control directly mitigates the risk of musculoskeletal disorders associated with lifting heavy components from ground level.

Frequently Asked Questions

Do you need a licence for a powered pallet truck?

Yes, formal training and employer certification are legally required to operate a powered pallet truck (classified as a Class 3 Powered Industrial Truck/PIT by OSHA and ANSI). While it does not require a government-issued “license,” OSHA standard 1910.178 mandates a documented program of formal instruction, practical training, and on-site evaluation led by your employerOSHA. Only after passing this evaluation and receiving written certification (valid for 3 years) can you operate one legally. Refresher training is required after accidents, unsafe operation, or equipment/worksite changes. Note: Manual pallet jacks are exempt from these certification rules.

What are the performance features of high lift pallet truck?

High lift pallet trucks offer stable lifting, easy operation, and strong maneuverability in narrow spaces. They provide ergonomic benefits by reducing bending and lifting strain for operators. Key features include reliable hydraulic performance, low maintenance, high structural strength, and suitability for various working environments such as warehouses, workshops, and production lines.
