Drum Handling Equipment
Drum Truck / Barrel Mover
Simple and Smart Drum Mover with Rotate Function
- Multi-Position Locking: Dual fingertip locks secure drums vertically for transport or horizontally for gravity-fed draining.
- High-Load Handling: Engineered chassis supports lifting and rotating of 208L (55 gal) drums with a 300kg (661.4 lbs) payload.
- Precision Mobility: Features 200mm (7.9 in) polyurethane roller bearing wheels and a rear swivel caster for tight maneuvering.
- In-Drum Agitation: Unlocked saddle allows 360-degree end-over-end rotation to mix settled contents without opening the vessel.
Model for Drum Mover
| Model | HD80 | |
|---|---|---|
|
Capacity
|
kg |
300 |
|
Drum
|
|
Plastic/Iron
|
|
Dimensions
|
mm |
1200×800×1200
|
|
N.W
|
kg |
45
|
|
Wheel
|
mm |
D200×20,D100×32
|
Request an Equipment Quote
Find More Drum Handling Equipment
Performance
Variable-Geometry Locking System

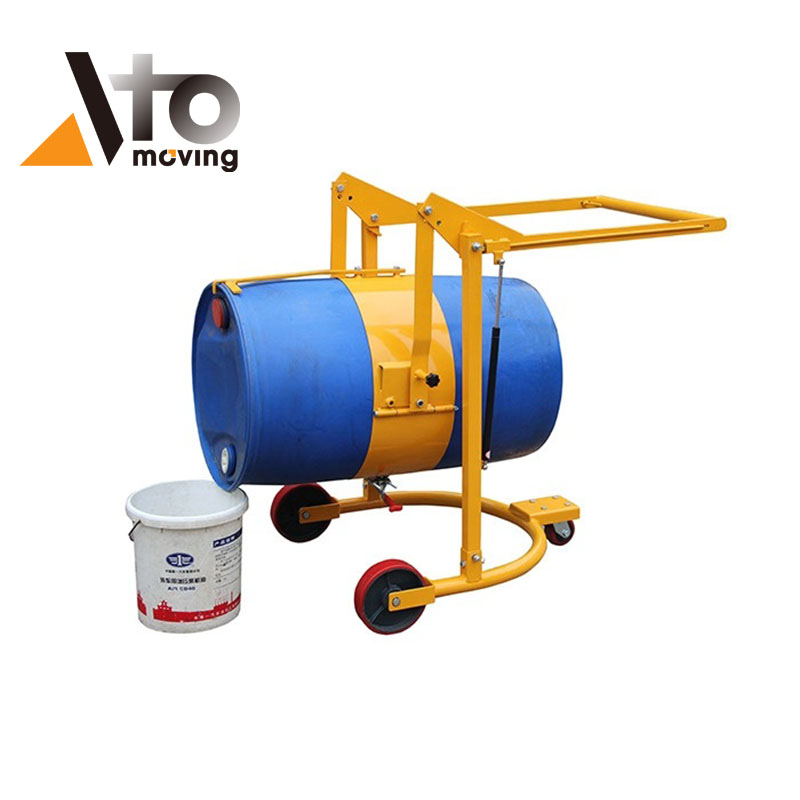

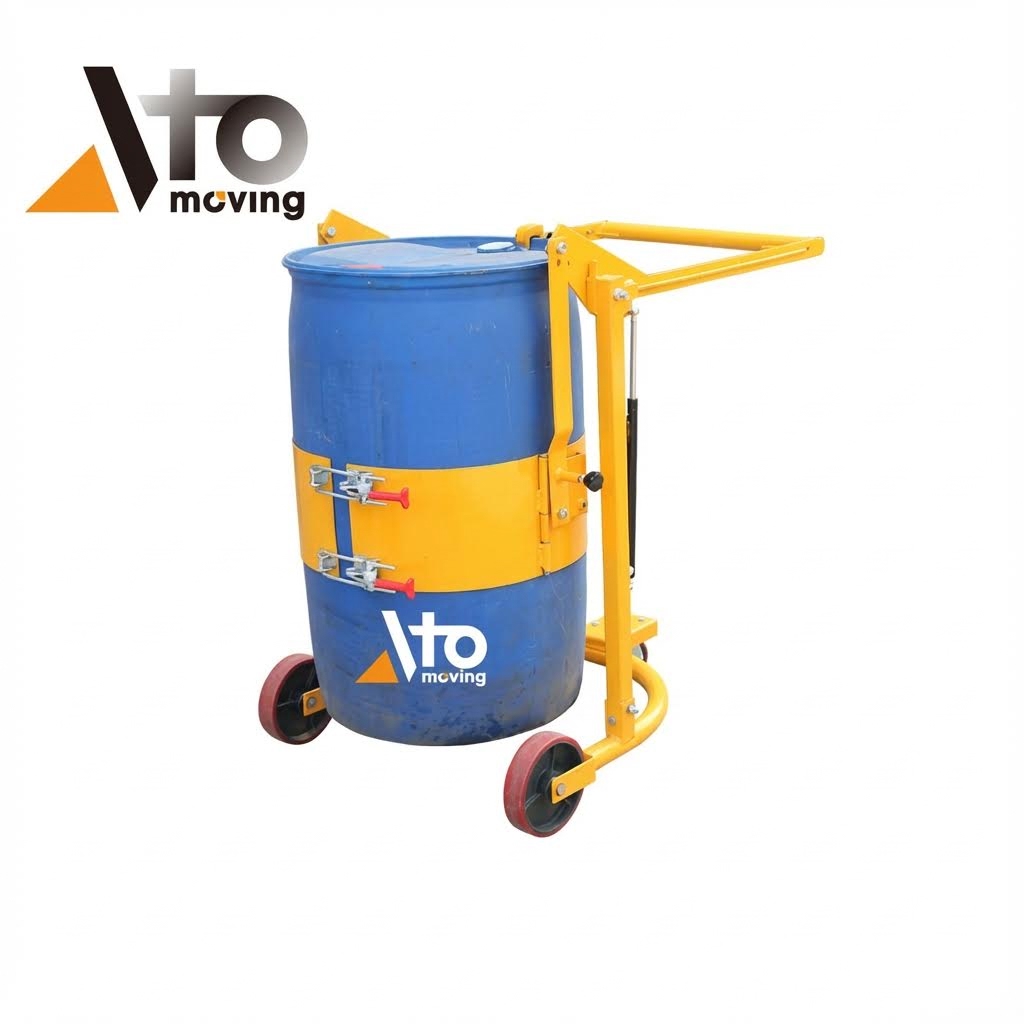

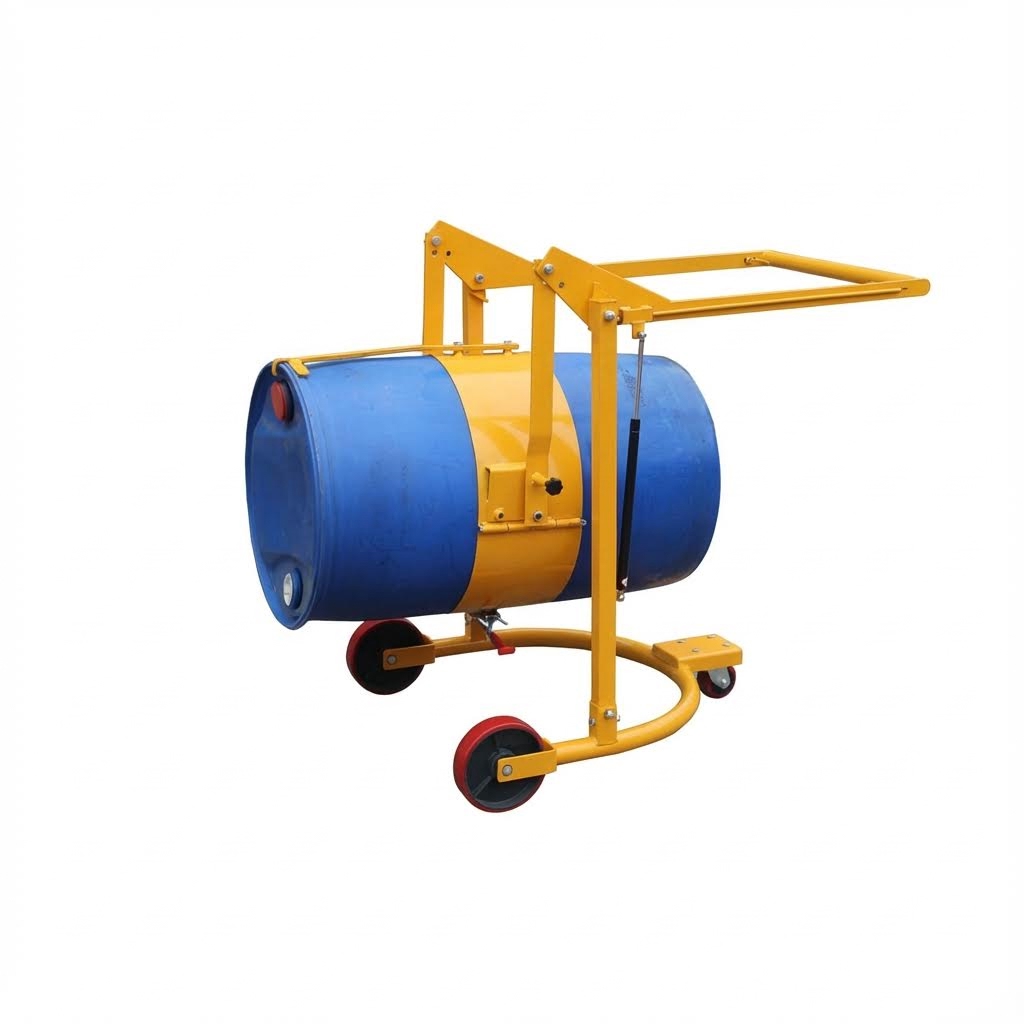

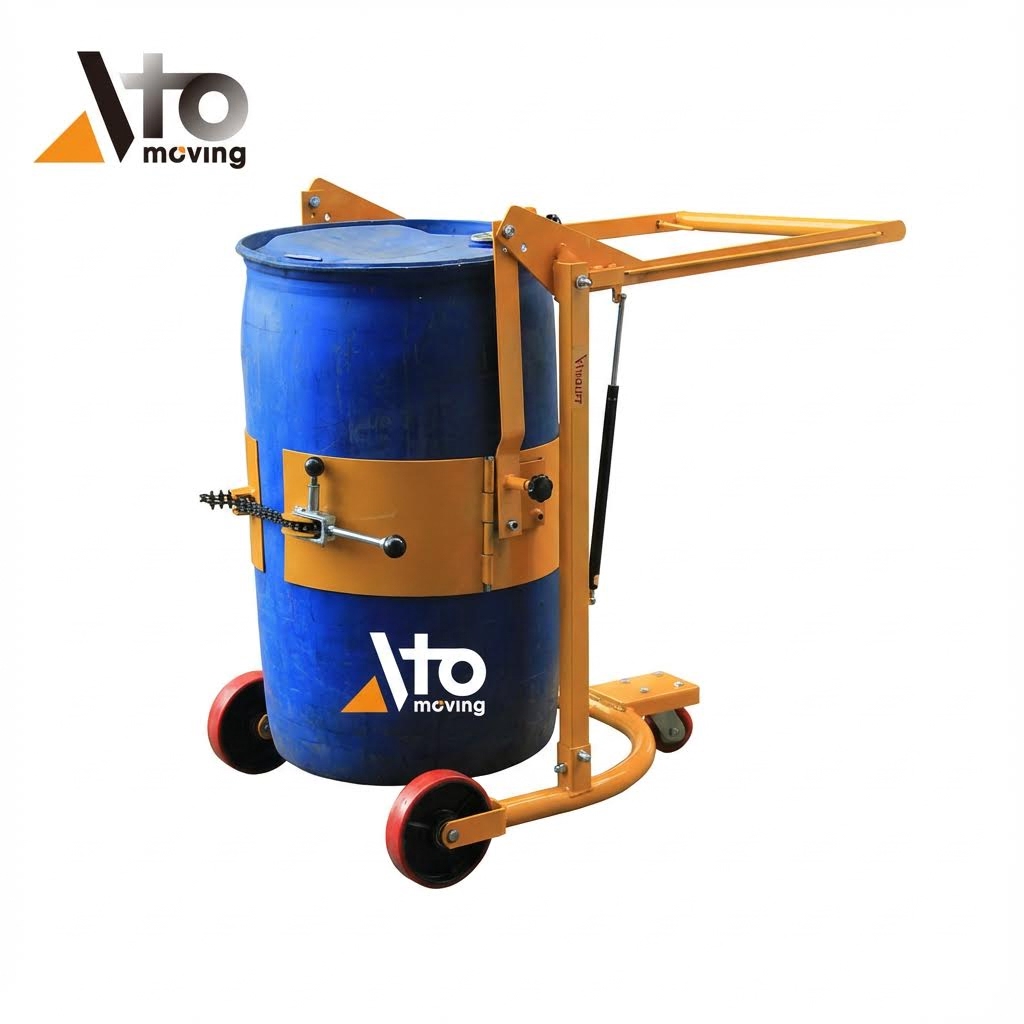

Mechanical Engineers will appreciate the precision of the HD80A’s saddle mechanism. The unit employs dual fingertip-operated locks that secure the drum at specific angles. When locked in the vertical position (), the drum is stabilized for high-speed transport across warehouse floors. When released to the horizontal position (), the unit acts as a static stand for gravity draining through a faucet. Furthermore, the unlock feature permits 360-degree rotation, enabling operators to agitate stratified liquids (such as separated paints or oils) completely within the sealed drum, eliminating the need for invasive mixing paddles or secondary agitation machinery.
Ergonomic Rolling Chassis Design
To minimize operator fatigue and musculoskeletal strain, the chassis utilizes a 3-point contact system that distributes weight efficiently. The primary load is supported by two 200mm (7.9 in) front wheels equipped with roller bearings, which reduce the breakout force required to initiate movement. Steering is managed by a rear swivel caster, allowing for precise navigation in narrow aisles. The wheels are shod in high-density polyurethane, which offers superior abrasion resistance compared to rubber and prevents flat-spotting under the unit’s full 300kg (661.4 lbs) load.
Operational Versatility & ROI
For Procurement Managers, the HD80 maximizes Return on Investment by consolidating multiple equipment functions. It replaces the need for separate drum cradles, dollies, and spines. The adjustable saddle tension is engineered to grip both rigid iron drums and slightly deformable plastic drums without compromising structural integrity. By enabling a single operator to lift, transport, and dispense a 208L (55 gal) drum, the HD80A reduces labor requirements and eliminates the need for powered forklifts in dispensing zones, lowering total operational costs.
Frequently Asked Questions
What is a drum mover and how does it work?
A drum mover is a specialized piece of material handling equipment used to safely transport, lift, and position heavy industrial drums. It usually uses a hydraulic lifting system, sturdy wheels, and a clamping or support frame to secure drums. The operator can move, tilt, or lift drums with minimal physical effort, greatly improving efficiency and safety.
What types of drums can a drum mover handle?
Drum movers can handle a wide range of industrial drums, including standard 55‑gallon steel drums, plastic drums, fiber drums, tight‑head drums, and open‑top drums. Most models are designed with universal or adjustable gripping mechanisms to fit common drum sizes and materials used in factories, warehouses, and chemical facilities.
How do I choose the right drum mover for my facility?
To choose the right drum mover, consider the drum size and weight, required lifting height, whether you need basic transport or stacking/tilting functions, floor conditions, and available space. Also check weight capacity, wheel type, construction material, and safety features such as locking mechanisms and stable design to match your daily operational needs.
