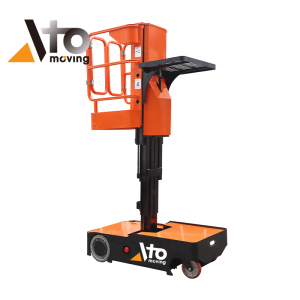

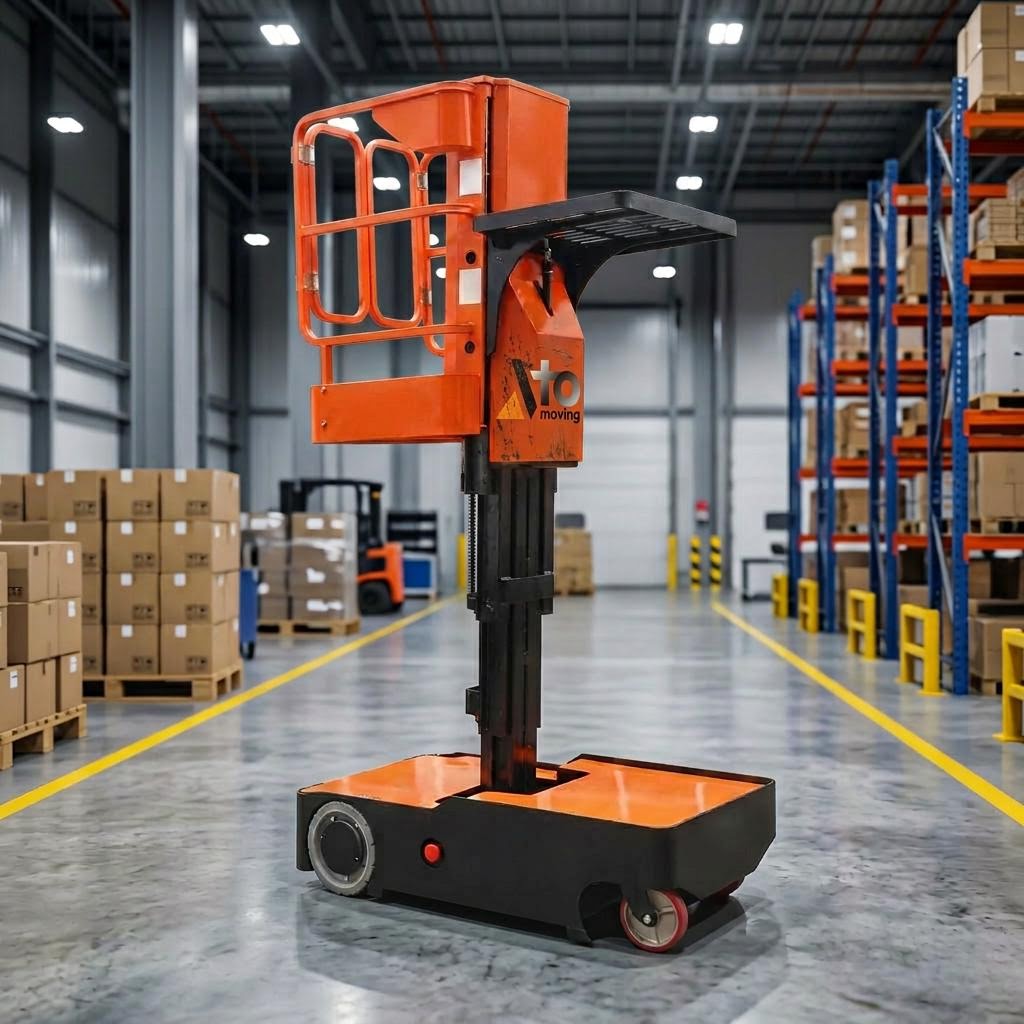

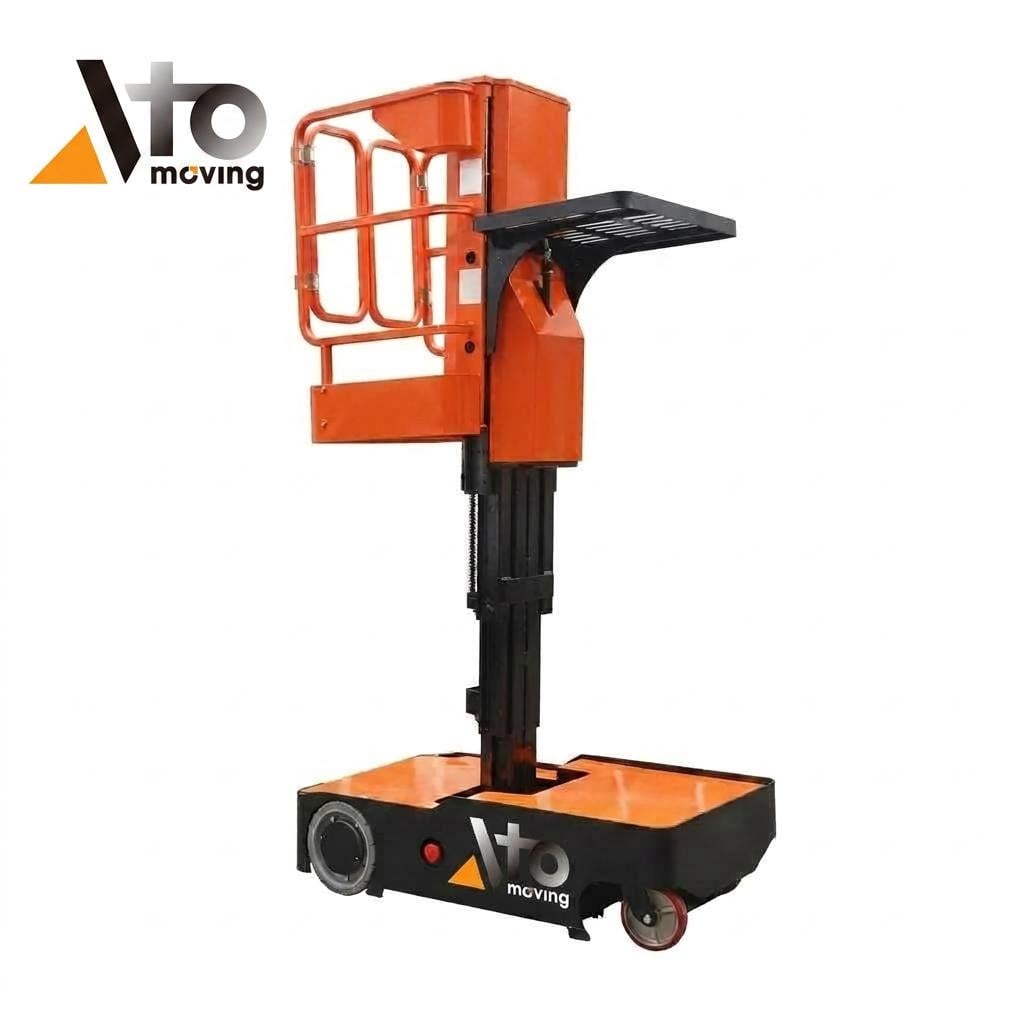

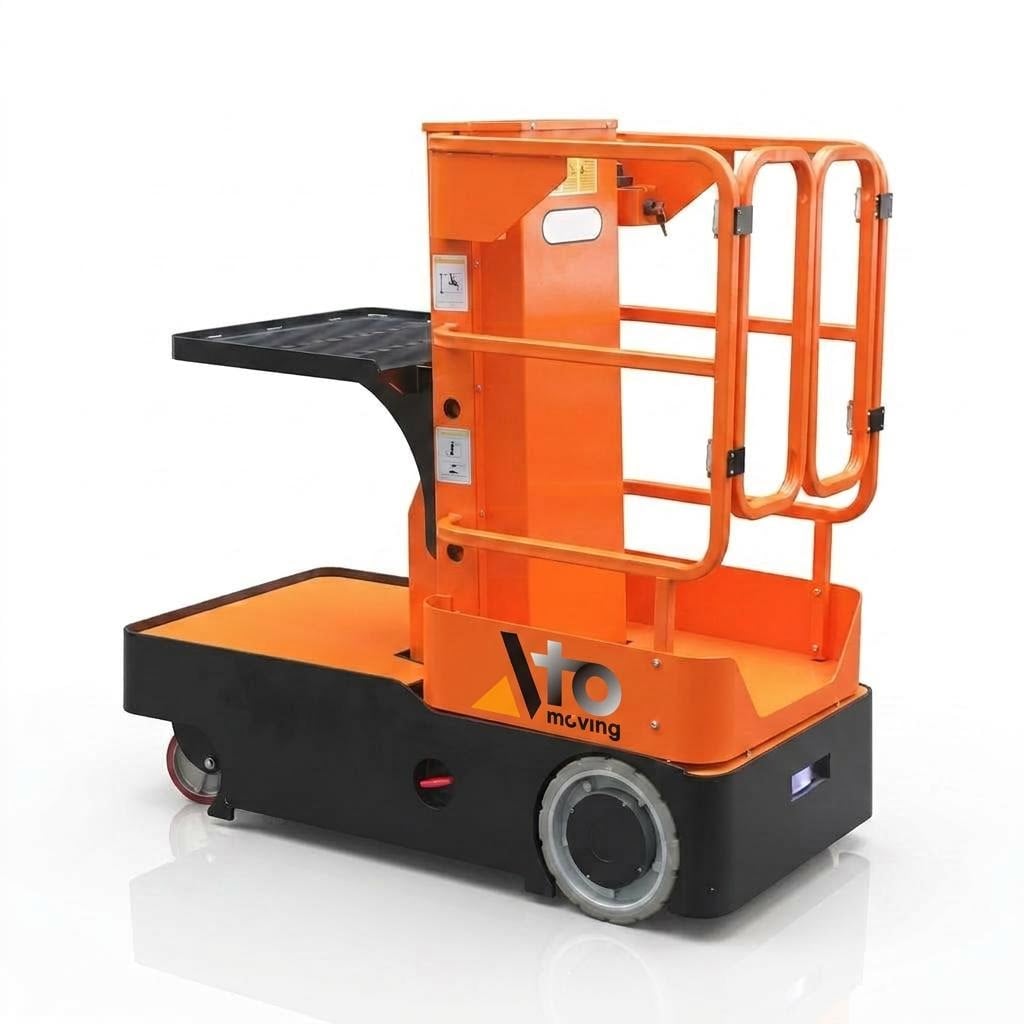

New Type Self-Popelled Order Picking Machines
- Quick-Change Flexibility – Effortlessly reconfigure shelving to accommodate different product sizes
- Enhanced Safety Design – Matched deck height, anti-slip grip tape, and anti-tip brackets ensure operator protection
- Lightweight Aluminum Construction – Superior durability at 1/3 the weight of steel alternatives
- Seamless Integration – Secure oak fork pocket locks reliably with existing order picker equipment
Transform your warehouse operations with our innovative self-propelled order picking machines designed for maximum efficiency and safety. These versatile platforms feature quick-change shelving systems for effortless customization, matched deck heights to eliminate trip hazards, and superior aluminum construction that’s one-third lighter than steel. With backward-sloping shelves for product containment and anti-slip safety features, these order picking machines deliver reliable performance in demanding vertical picking environments while boosting productivity.
Model for Order Picking Machines
| Model | FOP3 | FOP4 |
|---|---|---|
|
Maximum Platform Height (mm)
|
3000 |
4000 |
|
Working Height (mm)
|
4125
|
5125 |
|
Length (mm)
|
1480 |
1480 |
|
Width of the Whole Machine(mm)
|
756
|
756 |
|
Height (mm)
|
1475
|
1805
|
|
Standing Platform Dimensions (mm)
|
695 × 720
|
695 × 720
|
|
Grid Platform Size (mm) |
550 × 740 |
550 × 740
|
|
Stand-in Platform Load (kg)
|
150 |
150
|
|
Lattice Platform Load (kg)
|
90
|
90 |
|
Mileage of the Lattice Platform (mm)
|
480 |
480 |
|
Minimum Turning Radius (mm) |
1700
|
1700 |
|
Guardrail Height (mm) |
1100
|
1100 |
|
Ground Clearance (mm) |
15 |
15 |
|
Weight (kg)
|
840 |
870
|
| Model | FOP3 | FOP4 |
|---|---|---|
|
Rise/Fall Time (sec)
|
30 / 40 |
40 / 50 |
|
Maximum Climbing Capacity (°)
|
5° – 8° |
5° – 8° |
|
Front Tire Size (mm) |
φ200 × 50 |
φ200 × 50 |
|
Rear Tire Size (mm)
|
φ305 × 100
|
φ305 × 100 |
|
Lifting Motor (V / kW) |
24 / 0.8 |
24 / 0.8
|
|
Drive Motor (V / kW)
|
24 / 0.5 × 2 |
24 / 0.5 × 2
|
|
Travel Speed (km/h) |
0 – 4 |
0 – 4
|
|
Battery Voltage/Capacity (V / Ah) |
2 × 12 / 100 |
2 × 12 / 100
|
|
DC Charger (V / A) |
24 / 15
|
24 / 15 |
Request an Equipment Quote
Find More Order Picker
Performance
Maximize Warehouse Productivity with Adaptive Quick-Change Technology
Our order picking machines feature an innovative quick-change platform system that revolutionizes warehouse efficiency. The versatile shelving configuration allows operators to instantly customize platforms for different product dimensions and order requirements. With lift-off shelves pitched at 4° for optimal product retention, shelf runners positioned on 14″ centers, and optional 15″ and 30″ depth shelves, these order picking machines adapt seamlessly to your changing inventory needs. This flexibility eliminates downtime between different picking tasks, significantly boosting your operational throughput and order fulfillment speed.
Industry-Leading Safety Features for Confident Operation
Safety is paramount in our order picking machines design, incorporating multiple protective features that exceed industry standards. The matched deck height eliminates dangerous trip hazards during operator transitions, while anti-slip grip tape and anti-tip brackets provide secure footing and stability. Our order picking machines include smooth amplimesh sides and backward-sloping shelves that enhance product containment, preventing items from falling and creating potential safety risks. The ergonomic design reduces operator fatigue and injury risk, ensuring your workforce can operate these order picking machines safely throughout extended shifts.
Lightweight Aluminum Construction Delivers Unmatched Durability
Built with premium aluminum construction, our order picking machines offer exceptional strength while weighing nearly one-third less than traditional steel alternatives. This lightweight design reduces energy consumption and wear on your facility’s infrastructure while maintaining superior durability for long-term performance. The solid oak fork pocket block provides a secure, replaceable connection point that withstands repeated use, ensuring reliable operation of your order picking machines. This robust yet lightweight construction translates to lower maintenance costs and extended equipment lifespan, delivering exceptional return on investment for your material handling operations.
Frequently Asked Questions
What are order picking machines and how do they work?
Order picking machines are specialized material handling equipment designed to help warehouse workers efficiently pick and transport items from shelving or pallet racks to fulfill orders. They typically feature a platform that lifts the operator to various shelf heights, allowing manual picking of products at different levels
What types of order picking machines are available for warehouse use?
There are various types of order pickers including walkie order pickers (operator walks behind), rider order pickers (operator rides on a platform), vertical order pickers (lift operator high for tall racks), and automated guided vehicle (AGV) order pickers. Each type serves different warehouse layouts, order volumes, and picking heights.
How high can order picking machines lift operators for picking?
Order picking machines can typically reach heights between 9 and 40 feet, depending on the model. High-level operator-up order pickers can reach up to 40 feet, while mast-style order pickers usually handle lower heights, around 12 to 20 feet.
What is the difference between an order picking machine and a standard forklift?
Unlike standard forklifts which move entire pallets, order picking machines are designed for single-item or case picking directly from racks. They allow the operator to be lifted on a platform to the picking level, making them more maneuverable and suitable for narrow aisles and high-density storage.
Do I need special training or a license to operate order picking machines?
Yes, OSHA regulations require that operators of order picking machines have proper training and certification. The operator platform must meet safety standards, and users must be aware of safe operating procedures to reduce risks.
